 | ·Top Plate: S45C ·Punch Back Plate: CR12 ·Punch Plate: CR12MOV ·Stripper Housing: P20 ·Stripper Plate: CR12MOV ·Stripper Inserts: CR12MOV ·Die Plate: CR12MOV ·Cutting Die inserts: SKD11 | ·Bending Inserts: CR12MOV ·Blanking Punches: SKD11 ·Bending Die & Punches: CR12MOV ·Draw Die & Punches: P20 ·Setting Block: CR12 ·Die Back Plate: CR12 ·Bottom Plate: S45C ·Strip Guide & Spacer Plate: CR12 |

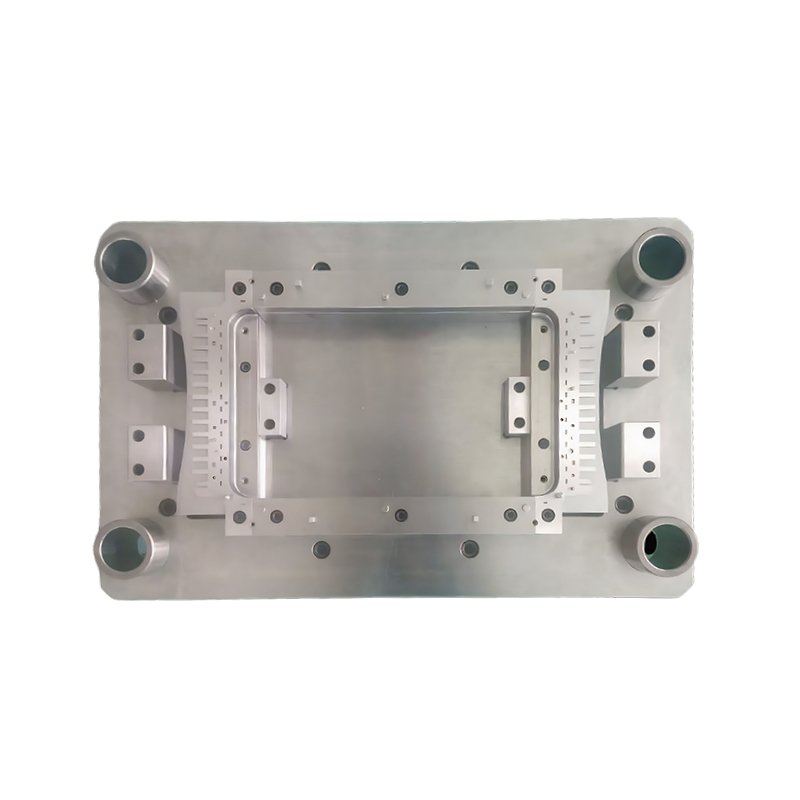

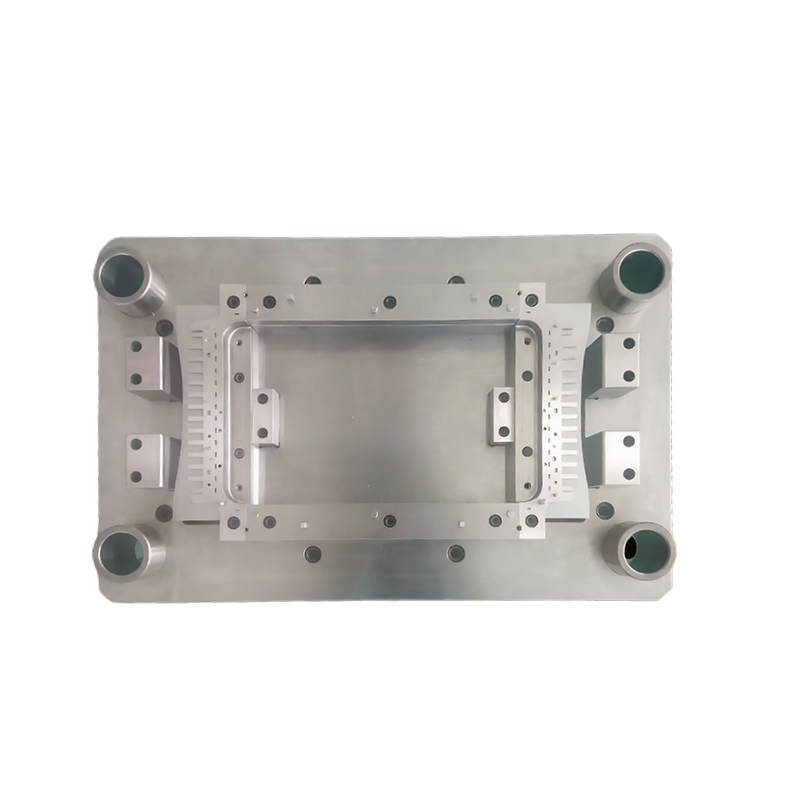

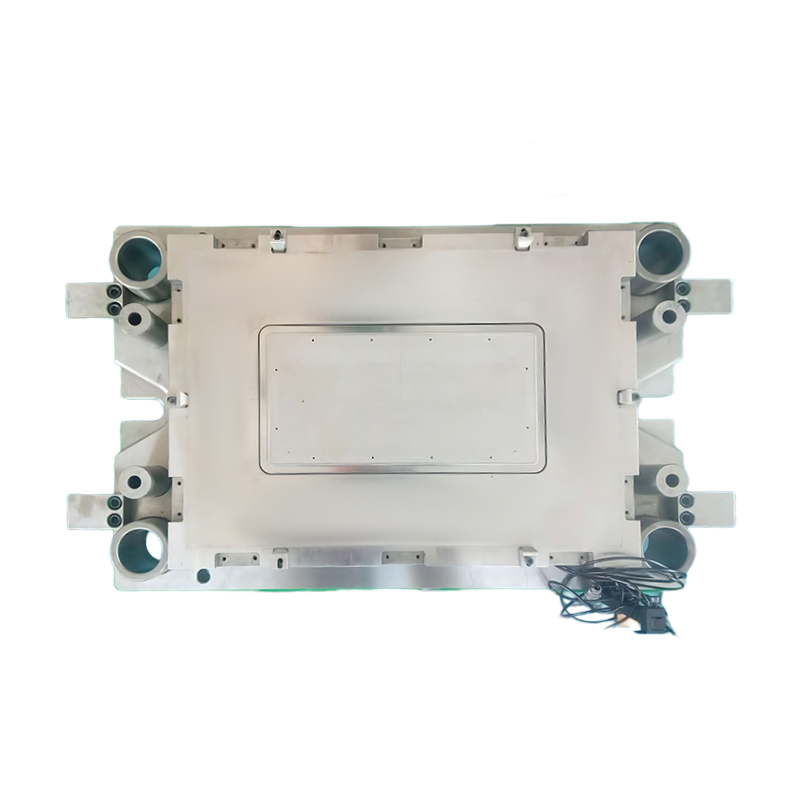

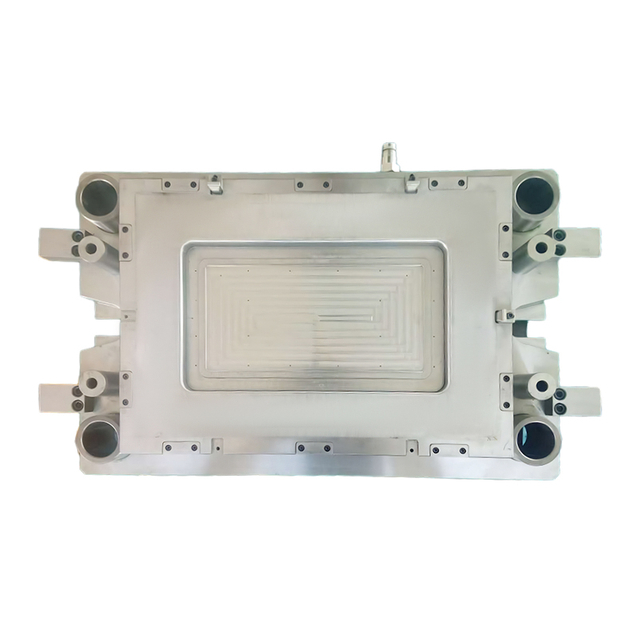

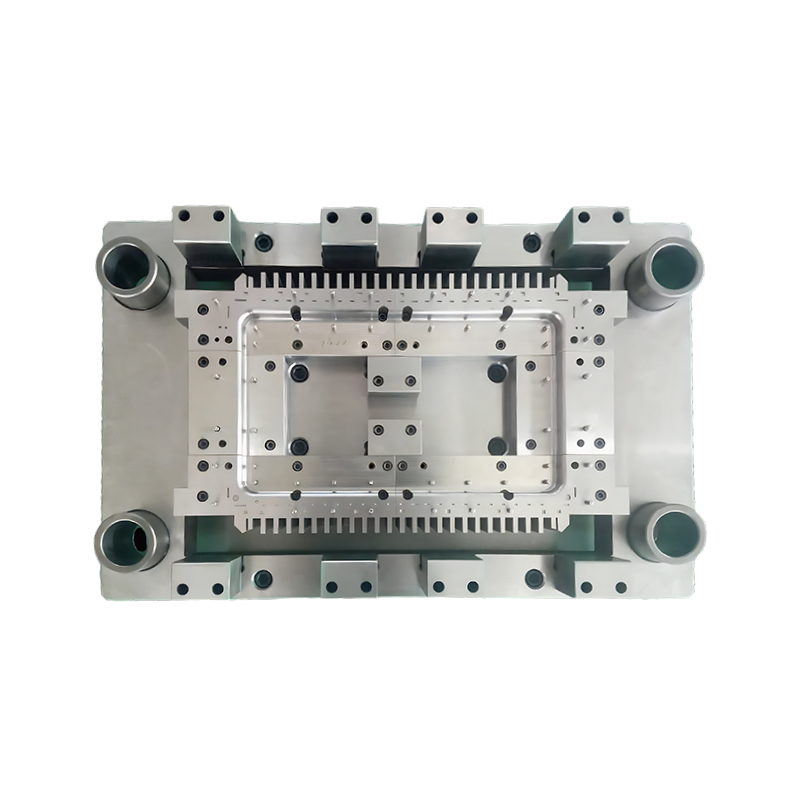

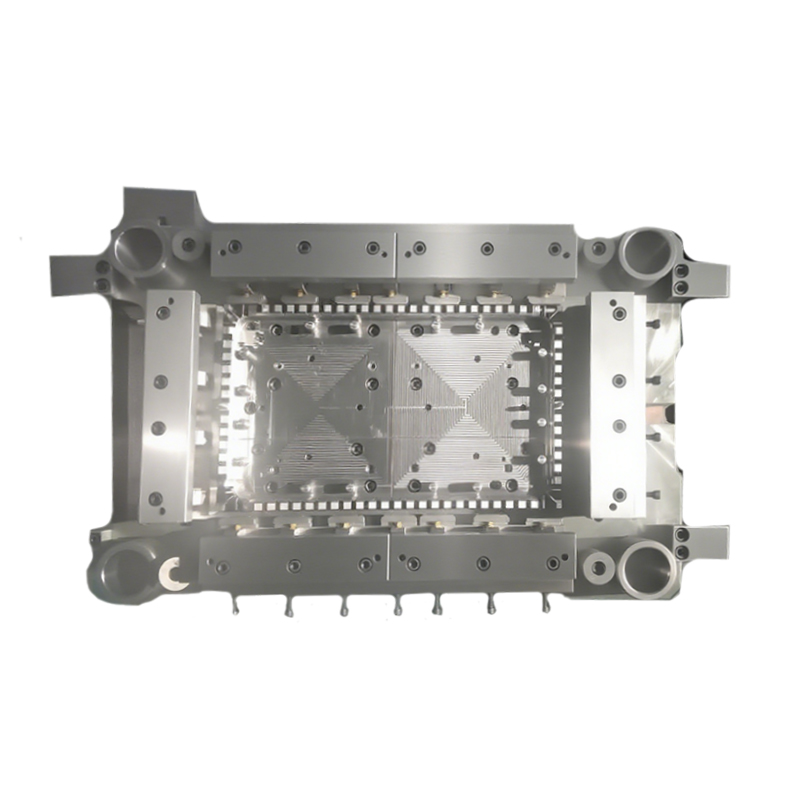

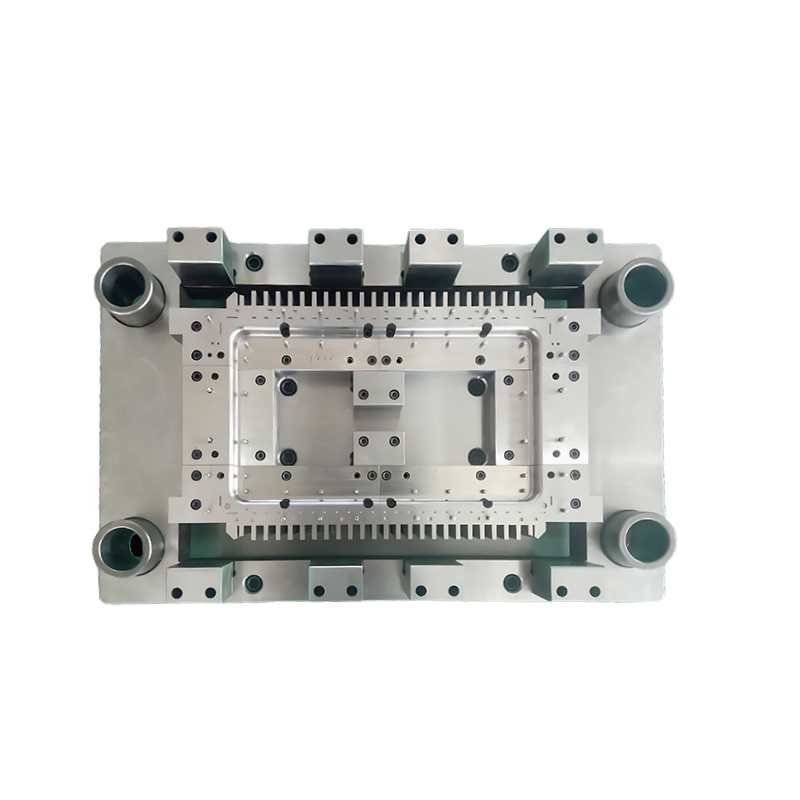

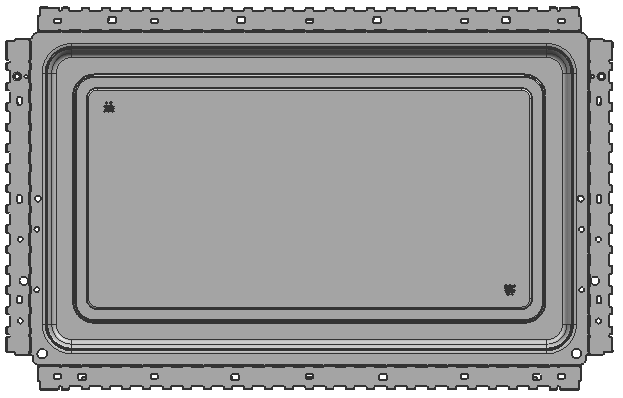

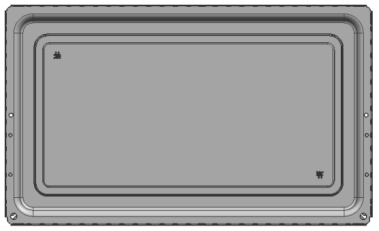

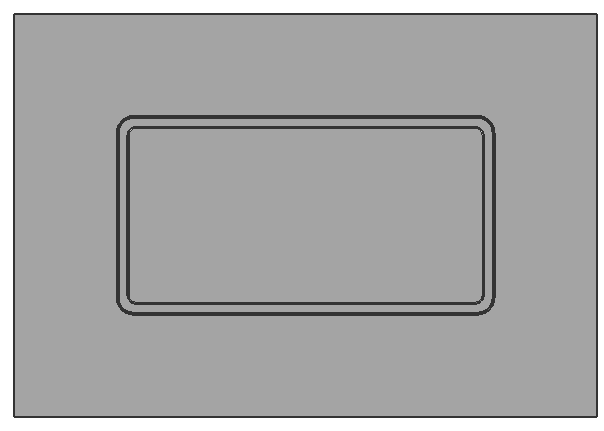

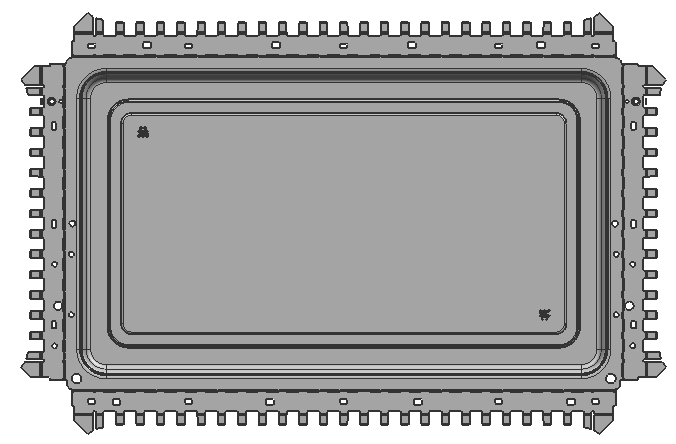

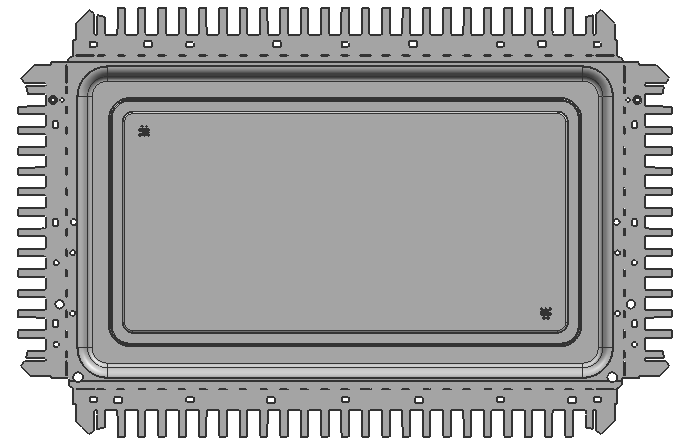

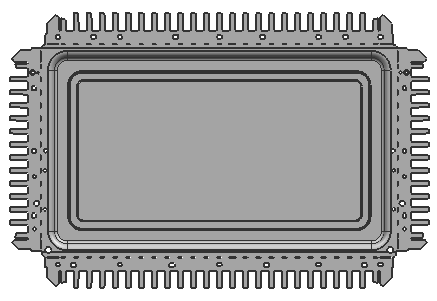

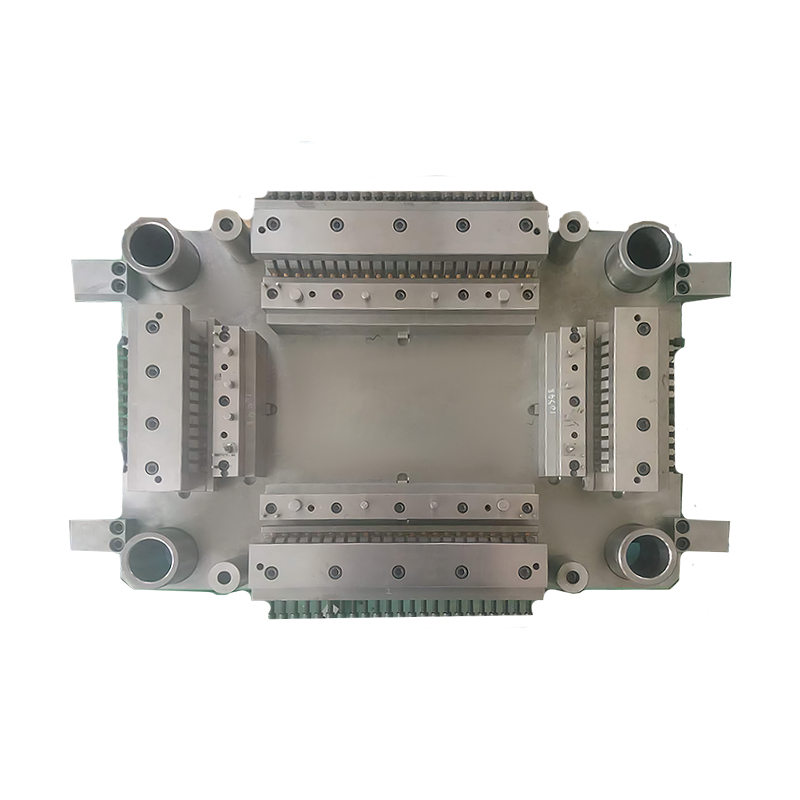

| OP10 Drawing | OP20 Drawing | OP30 Trimming/Piercing | OP40 Trimming/Piercing | OP50 Bending | OP60 Bending | OP70 Bending |
 |  |  |  |  |  |  |
| |  |  | | | |
 | When the mold design is finalized and given the green light, the production journey commences. In accordance with the official drawings, every component experiences a meticulous set of processes — from rough machining to wire cutting, precision grinding, heat treatment, and CNC machining. Each stage is carried out with rigorous exactness, ensuring the material's structural soundness is preserved while dimensions meet the highest standards. By means of this seamless fusion of advanced technology and skilled workmanship, raw materials are converted into precision-engineered parts, ready to be assembled into molds that showcase durability, efficiency, and technical excellence. |
 |  |  |
 |
