 | ·Top Plate: S45C ·Punch Back Plate: CR12 ·Punch Plate: CR12MOV ·Stripper Housing: P20 ·Stripper Plate: CR12MOV ·Stripper Inserts: CR12MOV ·Die Plate: CR12MOV ·Cutting Die inserts: SKD11 | ·Bending Inserts: CR12MOV ·Blanking Punches: SKD11 ·Bending Die & Punches: CR12MOV ·Draw Die & Punches: P20 ·Setting Block: CR12 ·Die Back Plate: CR12 ·Bottom Plate: S45C ·Strip Guide & Spacer Plate: CR12 |

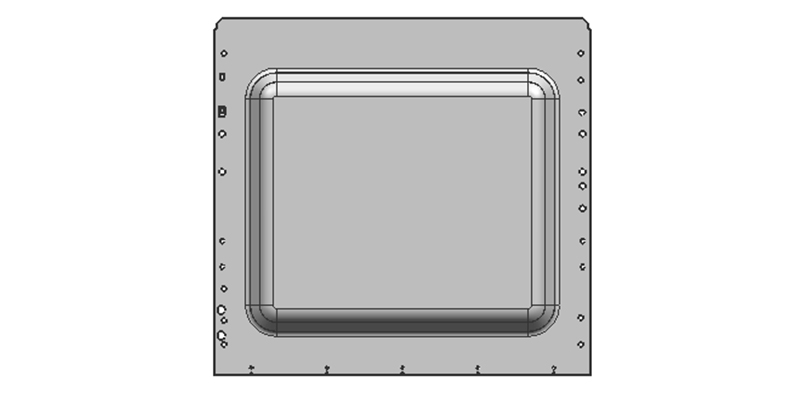

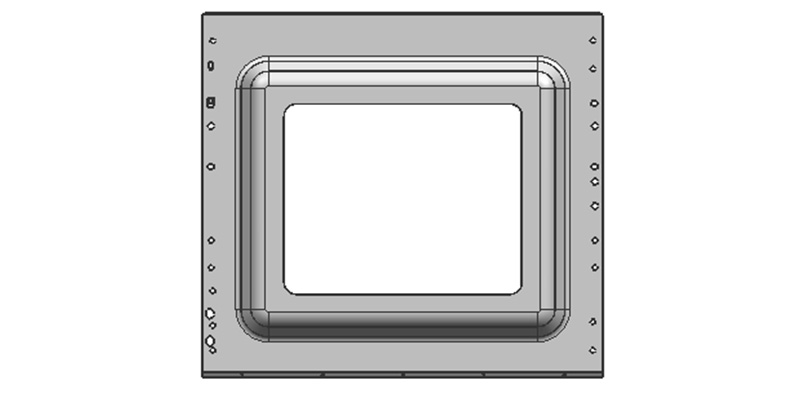

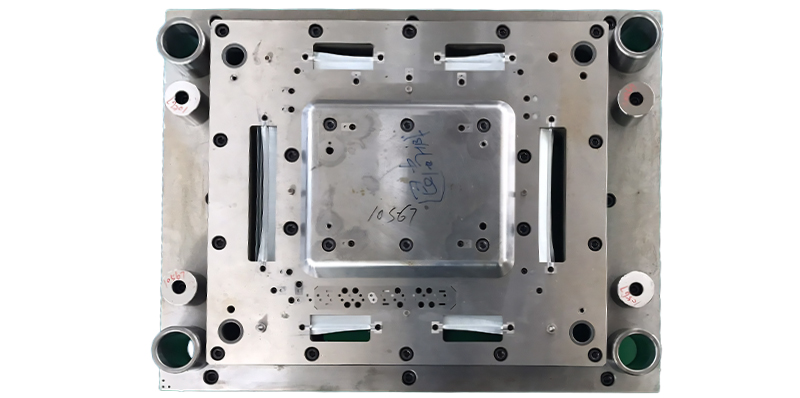

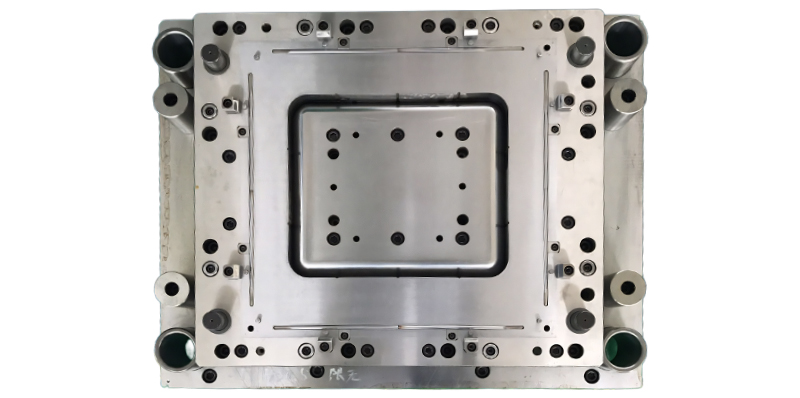

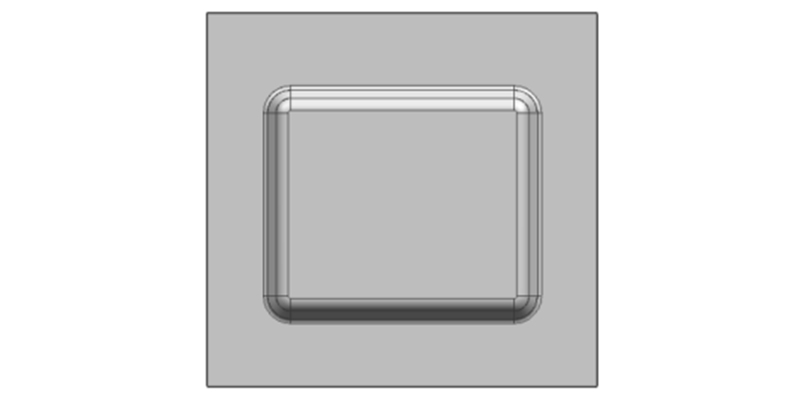

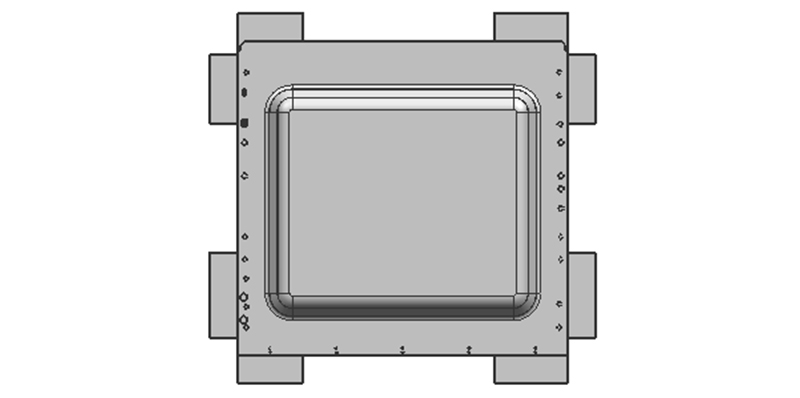

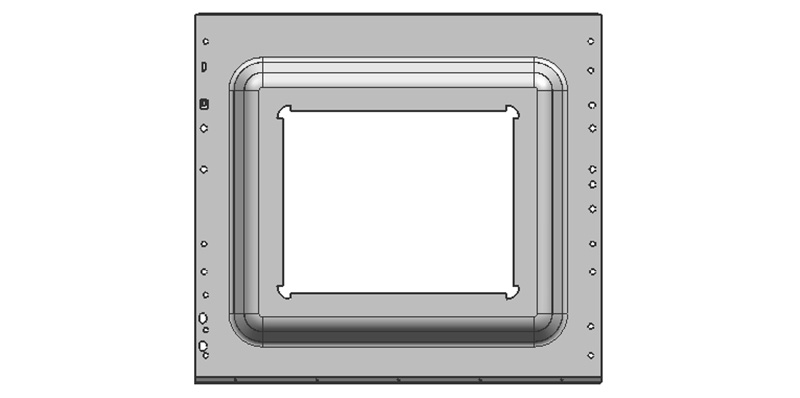

| OP10 Drawing | OP20 Trimming /Piercing | OP30 Trimming /Piercing |
 |  |  |
 |  |  |

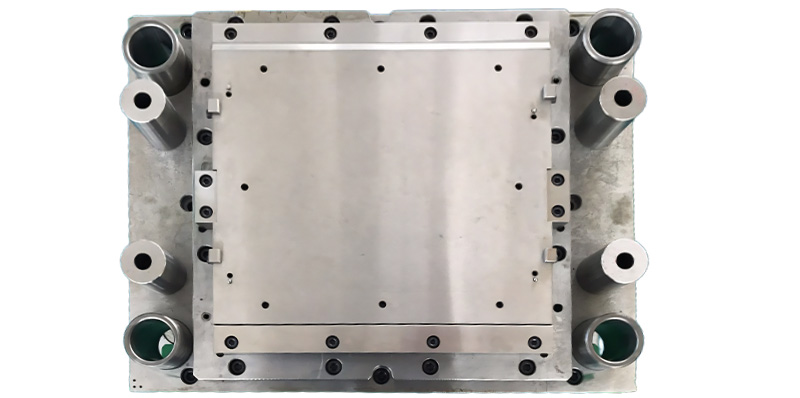

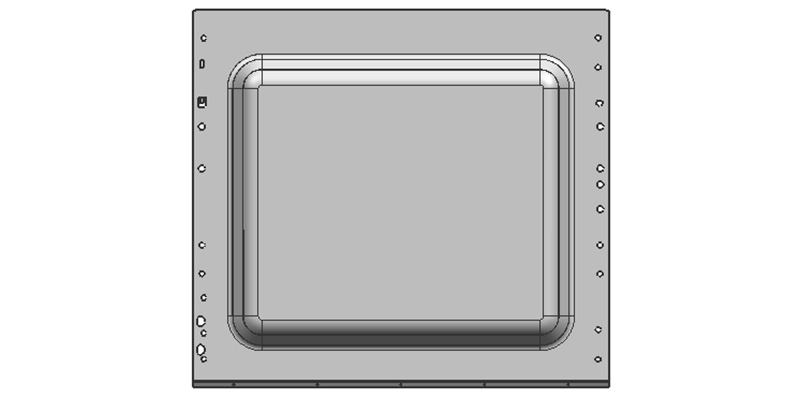

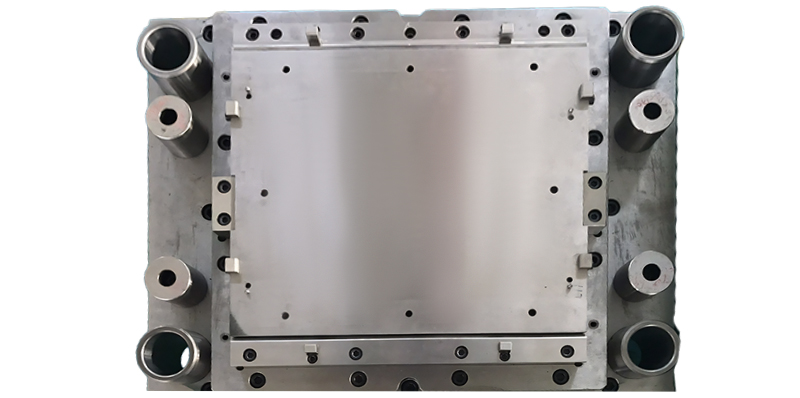

| OP40 Bending | OP50 Bending | OP60 Piercing |
 |  |  |
 | | |

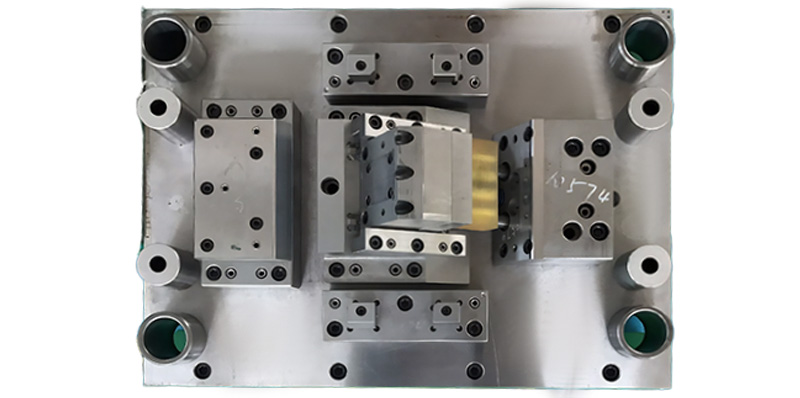

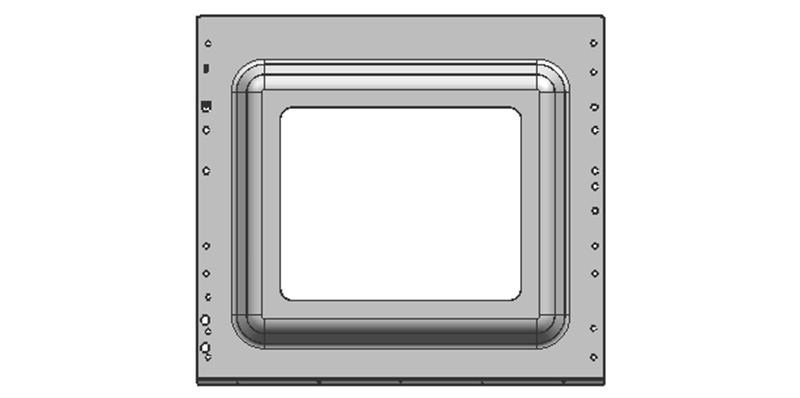

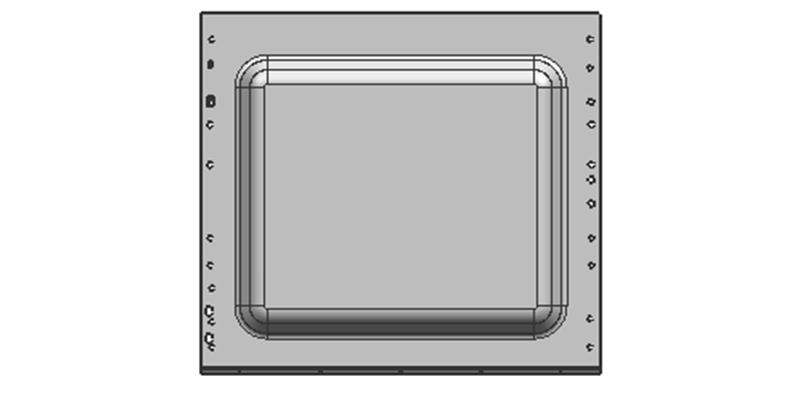

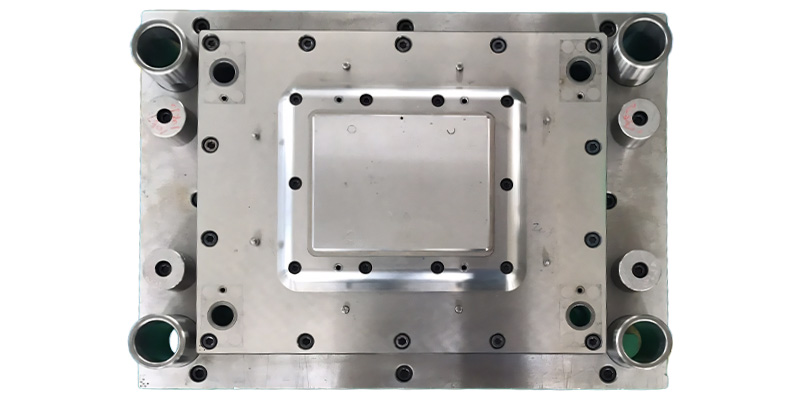

| OP70 Hole flanging | OP80 Side piercing | OP90 Hole flanging |
 |  |  |
| | |
 | When the mold design is confirmed and given the go-ahead for production, the production process starts. In line with the official schematics, every component experiences a meticulous set of operations — ranging from rough machining to wire cutting, precision grinding, heat treatment, and CNC machining. Each stage is performed with rigorous exactness, guaranteeing the material's structural soundness is preserved while dimensions meet the most demanding standards. Through this harmonious fusion of advanced technology and skilled craftsmanship, raw materials are turned into precision-engineered parts, ready to be assembled into molds that showcase durability, efficiency, and technical excellence. |
 |  |  |
 |
