unwavering accuracy and high-speed continuity, empowering manufacturers to elevate quality, enhance consistency, and embrace a new standard of intelligent production.

    Production line parameters

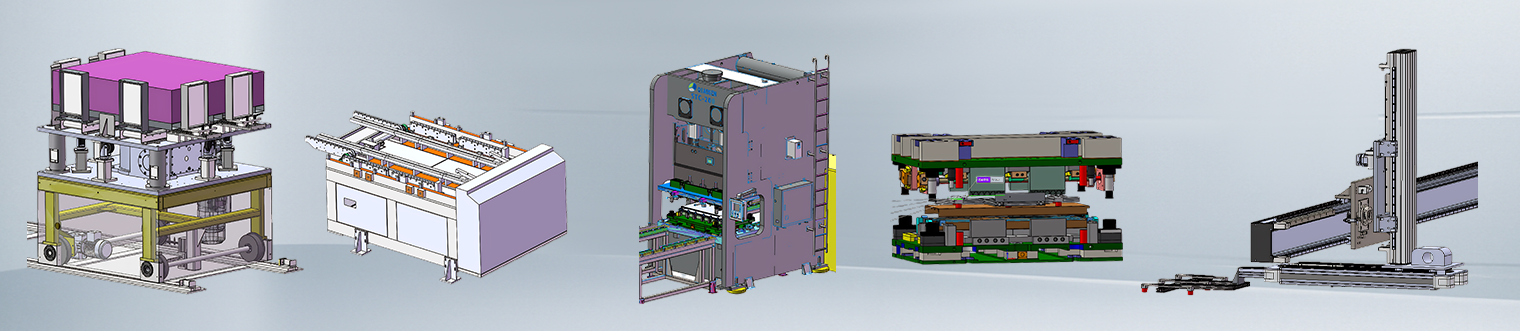

    Production line composition

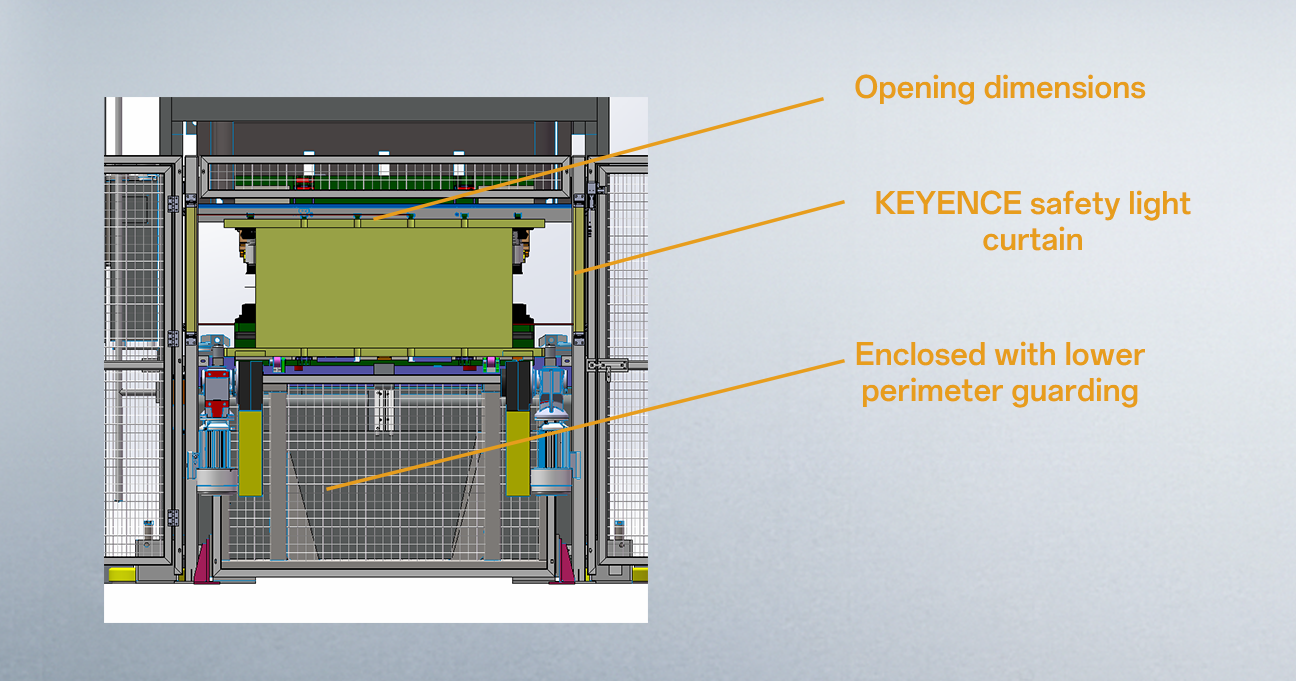

A loading trolley, die-changing station, 200-ton press, stamping dies, safety fencing, gantry robot, unloading conveyor belt, electrical system, pneumatic system, and monitoring system.



Production Process of the Stamping Line: Forklift-loaded blanks are manually placed and aligned on the loading cart. The cart then moves to the robot pick-up position. After activating the two-hand safety buttons, the upper pick-up robot retrieves the blanks directly from the cart and transfers them onto the secondary positioning conveyor for precise alignment.

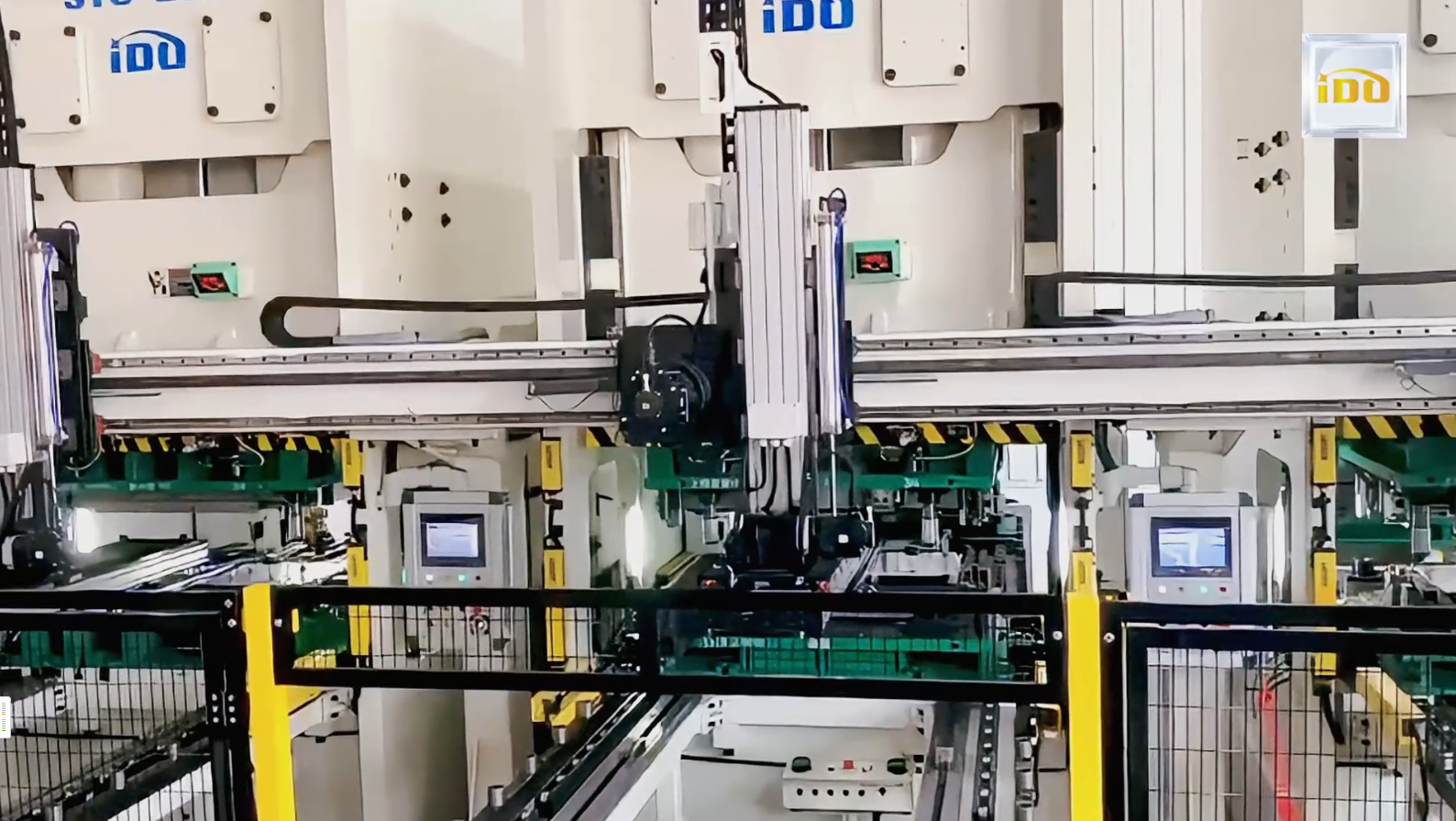

Next, a five-axis gantry robot picks up the positioned blank and places it into the first press for forming. Once the first-stage stamping is completed, the gantry robot transfers the part to the second press, and the process continues sequentially. After four stamping operations, the gantry robot places the finished part onto the unloading conveyor. Operators then collect the final parts at the end of the conveyor line.
