Cases-Laundry（等离子焊接内筒）

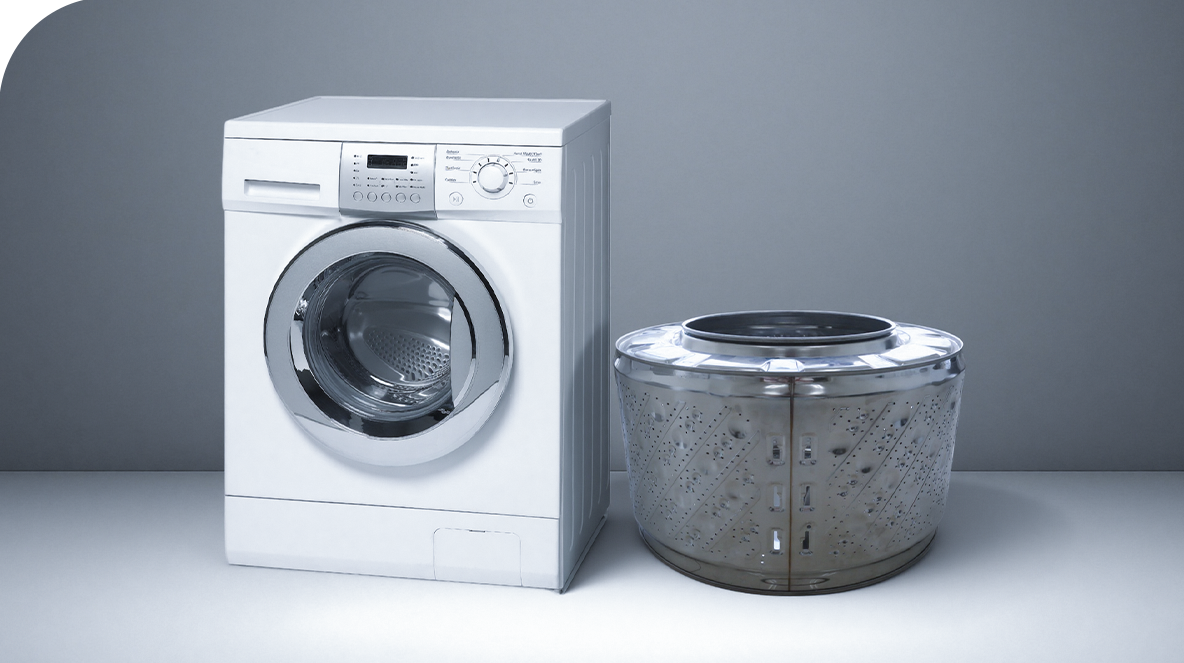

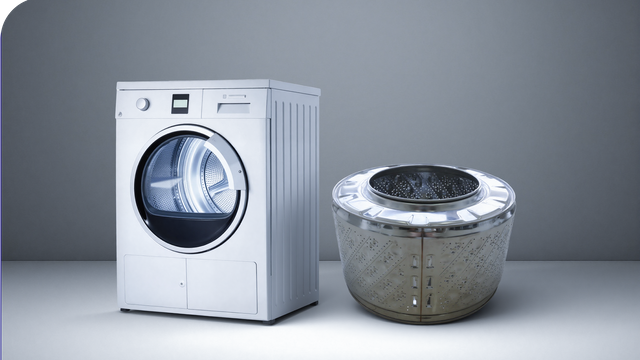

Washing Machine Drum Assembly Line

(plasma welding type)

Designed with precision and flexibility, our forming line meets diverse production needs while ensuring efficiency and consistency.

Overseas clients recognize its professional engineering and adaptable performance, delivering both reliability and satisfaction in every project.

The Mission of the Line

The purpose of this production line is to transform raw materials into finished products with precision and consistency. Every stage is carefully engineered, turning simple beginnings into refined results, where efficiency meets craftsmanship to deliver excellence.

Production line parameters

Line cycle	≤25S
Labor requirement	2 persons (manual loading and unloading)
Operating temperature	-8℃ ~ +45℃
Relative humidity	≤90%
Compressed air source	0.5~0.8MPa
Load bearing of covered floor	3t/m2
3-phase 5-wire system	AC380V±10% 50HZ± 2%
Single-phase	AC220V±10% 50HZ±2%

Production line composition

Stamping section

Welding section

Forming section

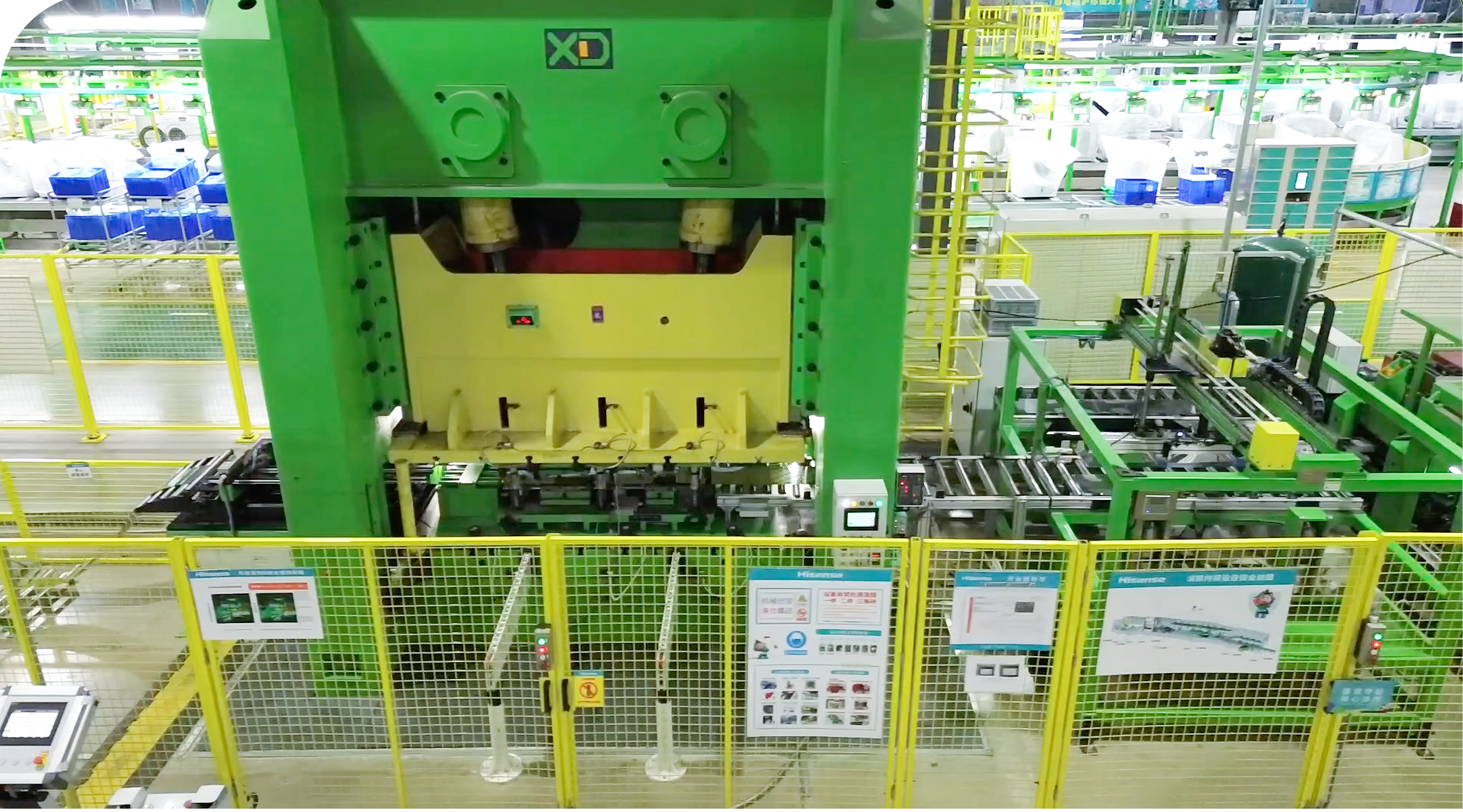

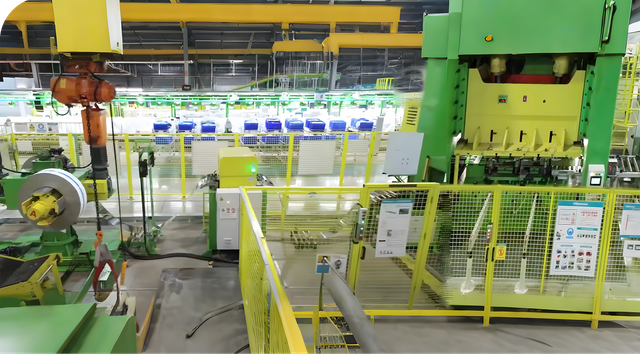

Cold Stamping section

The stamping section follows a streamlined and precise process. Coils are first unwound by the decoiler, then flattened and leveled through the straightener to ensure material consistency. Next, the sheet is accurately advanced by the servo feeder, delivering it to the press with optimal positioning. Finally, the press machine and tooling perform high-precision stamping operations, shaping each component to exact specifications with efficiency and consistency.

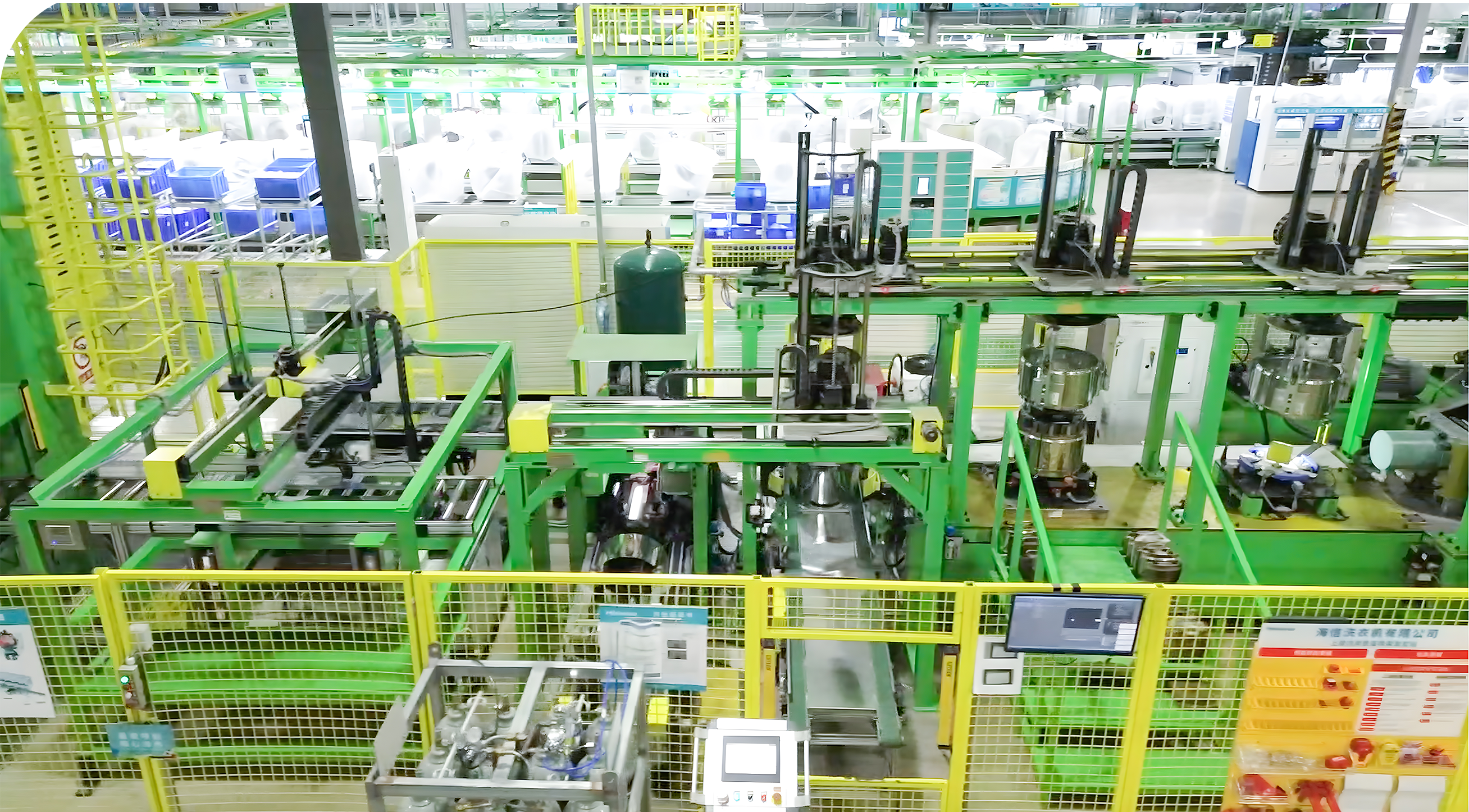

Welding section

In the welding section, components are conveyed to the welding stations via transfer lines and robotic arms for precise, automated handling. After undergoing precision cutting and turnover transfer, each part is accurately positioned for plasma welding, ensuring high-quality welds, consistent performance, and enhanced production efficiency.

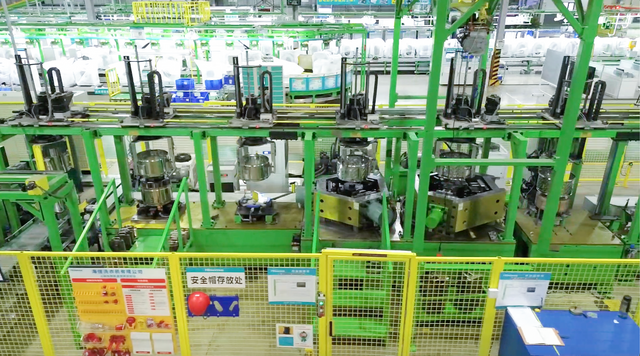

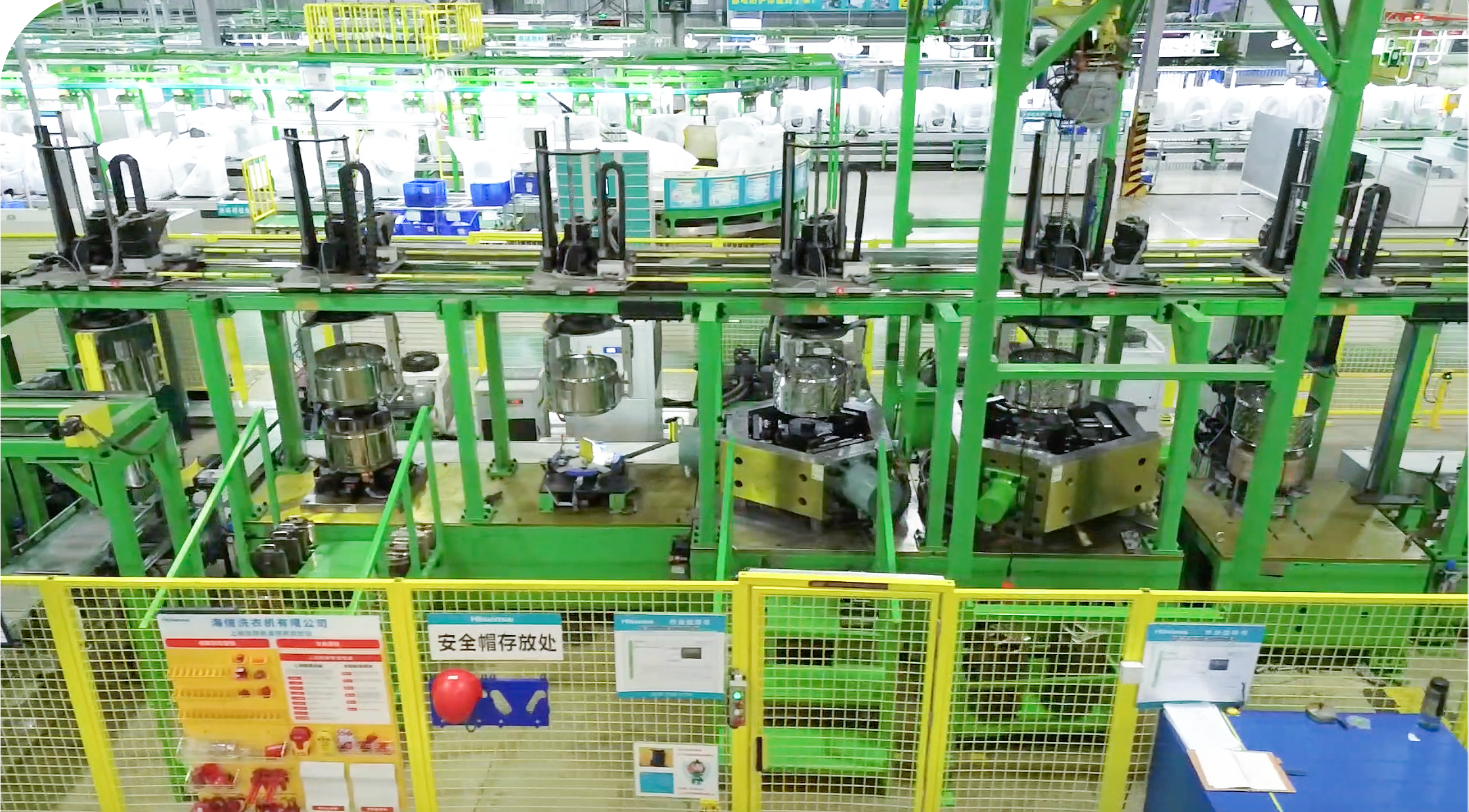

Forming section

Following the welding stage, components enter the forming section for a series of high-precision operations, including expanding, embossing, flanging, lifter screw hole piercing, and seaming, sprider hole piercing, countersinking and screwing. All raw materials of the drum assembly such as front cover, back cover, screws will be loaded to the line with belt conveyor. Only one operator is needed to pre-assemble the round drum part with front cover and back cover./ Once all forming operations are completed, the assemblies are transferred smoothly to the next stage via a roller conveyor, ensuring an efficient and continuous production flow.
