 | ·Top Plate: S45C ·Bottom Plate: S45C ·Punch Back Plate: CR12 ·Punch Plate: P20 ·Stripper Housing: P20 ·Stripper Plate: CR12MOV ·Stripper Inserts: CR12MOV ·Die Plate: CR12MOV | ·Die Back Plate: CR12 ·Cutting Die inserts: SKD11 ·Bending Inserts: CR12MOV ·Blanking Punches: SKD11 ·Bending Die & Punches: CR12MOV ·Draw Die & Punches: CR12MOV ·Setting Block: CR12 ·Strip Guide & Spacer Plate: CR12 |

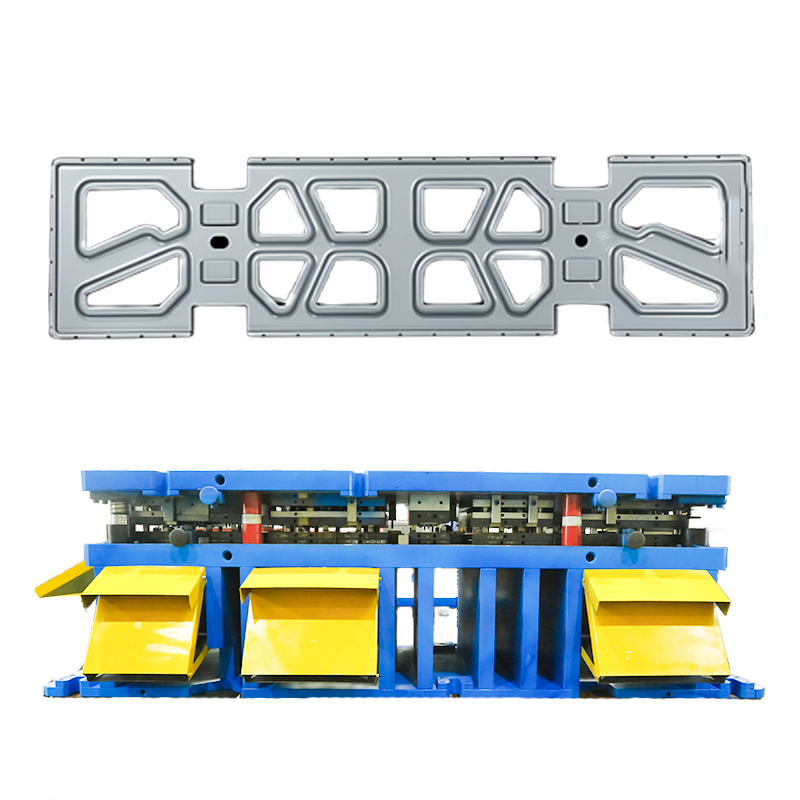

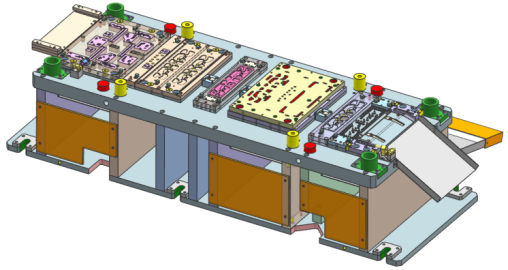

  | After receiving the client’s automotive tray table drawings, we start with CAE simulation to verify strength, precision, and manufacturability. Based on the analysis, we develop a clear technical plan, focusing on the specific structural and functional requirements of the mold. The design process emphasizes practicality and efficiency, ensuring smooth production and long-term durability. From initial concept to finalized design, every detail is optimized to meet the client’s targets and ensure reliable performance in mass production. |
 | Once the mold design is finalized and released, the manufacturing journey begins. Guided by the approved drawings, each component undergoes a meticulous series of processes — from rough machining to wire cutting, precision grinding, heat treatment, and CNC machining. Every stage is executed with uncompromising accuracy, ensuring that the material’s integrity is preserved while the dimensions meet the most exacting standards. Through this seamless integration of advanced technology and skilled craftsmanship, raw materials are transformed into precision-engineered parts, ready to assemble into molds that embody durability, efficiency, and technical excellence. |
 |  |  |
 |
