 | ·Top Plate: S45C ·Bottom Plate: S45C ·Punch Back Plate: CR12 ·Punch Plate: CR12MOV ·Stripper Housing: CR12 ·Stripper Plate: CR12MOV ·Stripper Inserts: CR12MOV ·Die Plate: CR12MOV | ·Die Back Plate: CR12 ·Cutting Die inserts: SKD11 ·Bending Inserts: CR12MOV ·Blanking Punches: SKD11 ·Bending Die & Punches: CR12MOV ·Draw Die & Punches: CR12MOV ·Setting Block: CR12 ·Strip Guide & Spacer Plate: CR12 |

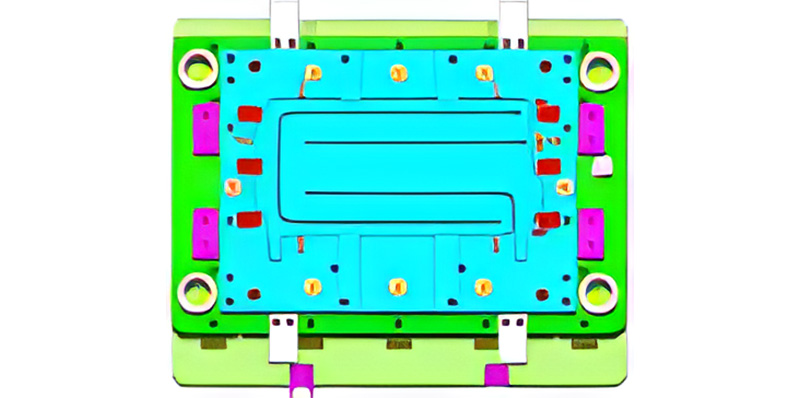

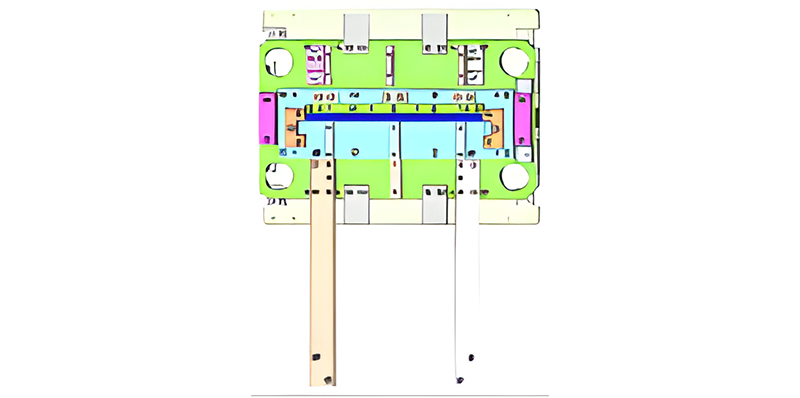

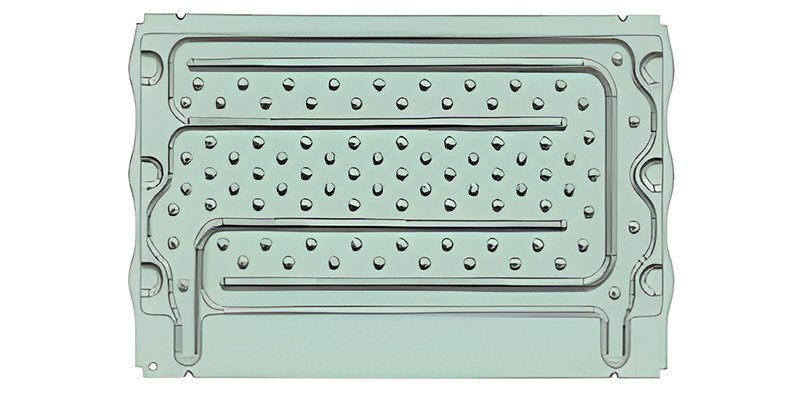

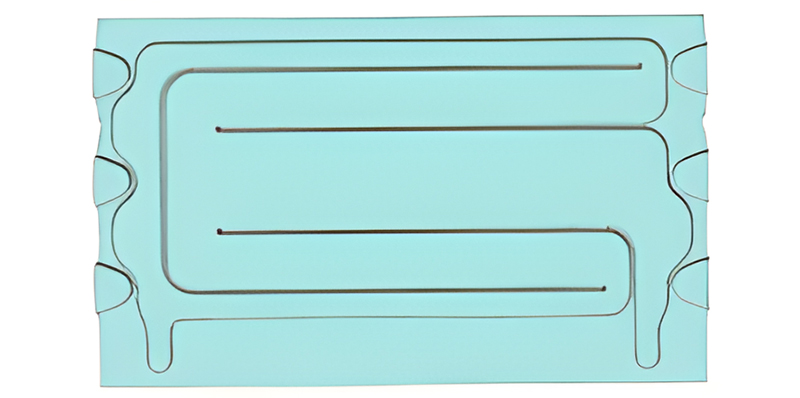

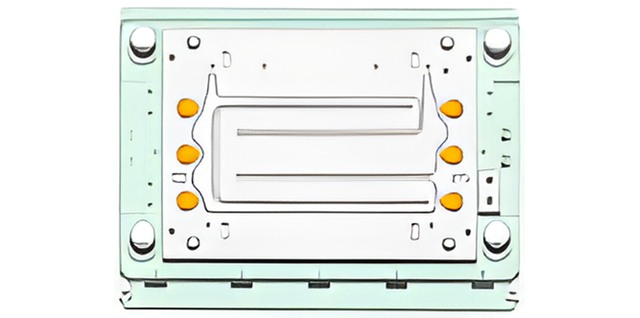

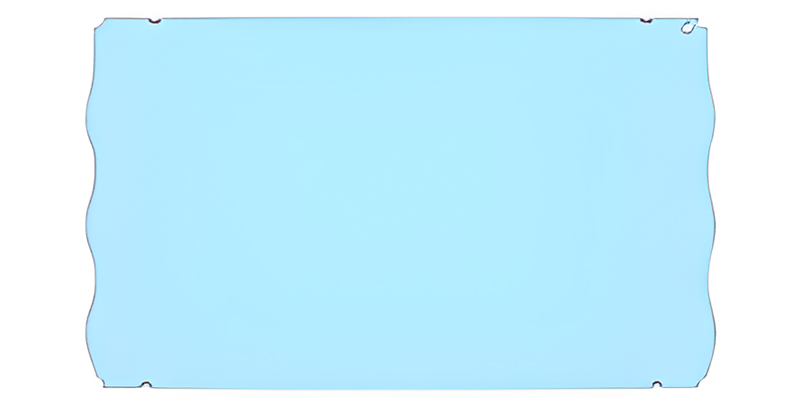

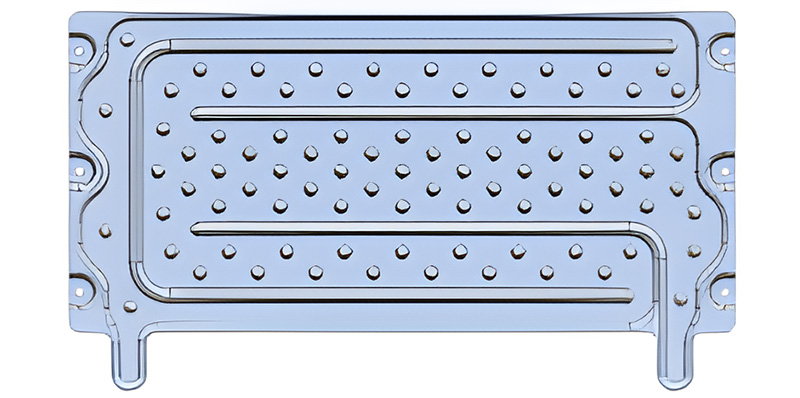

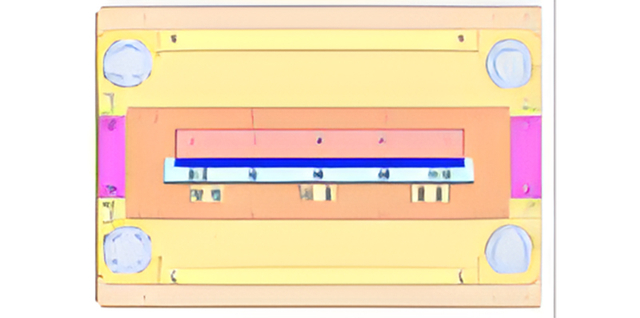

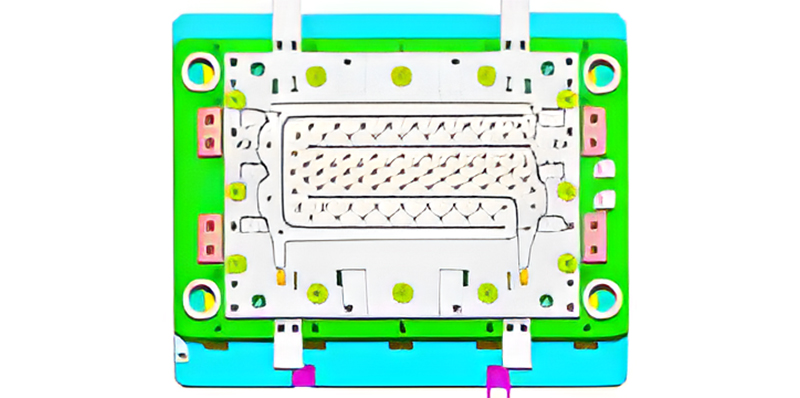

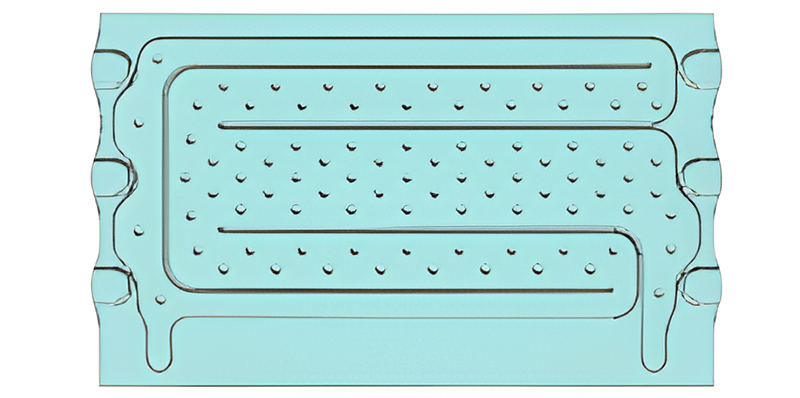

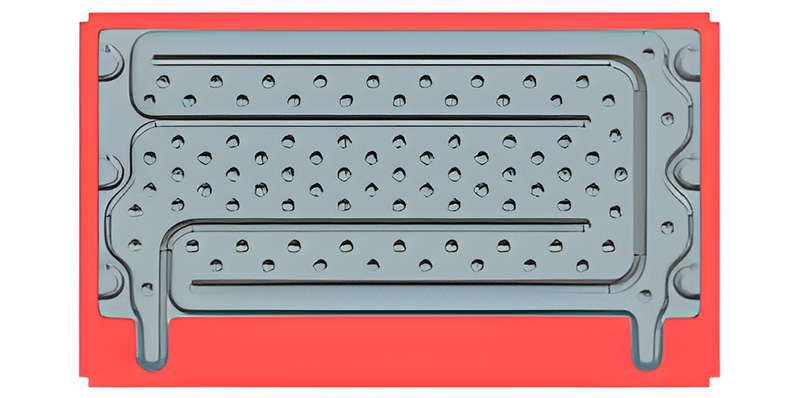

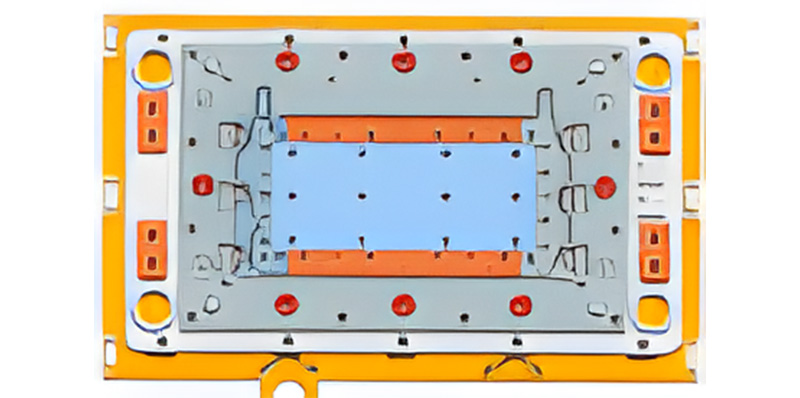

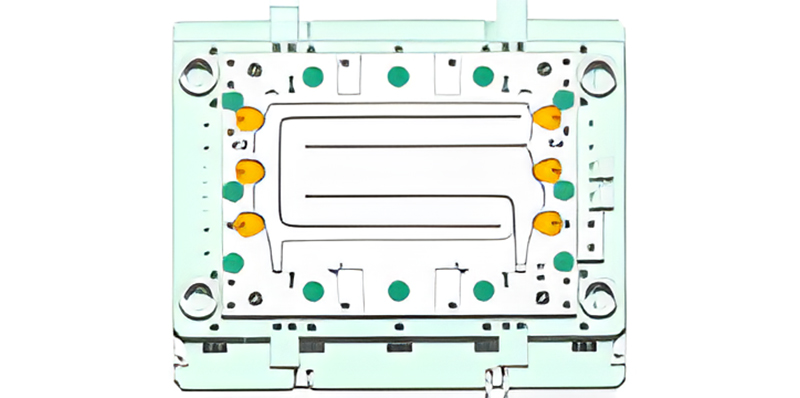

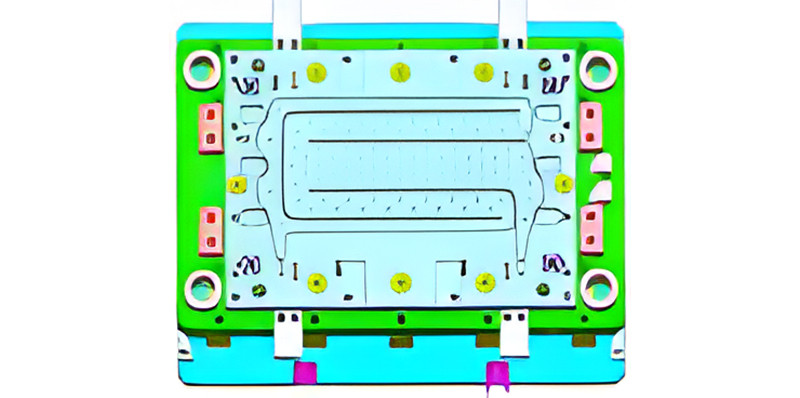

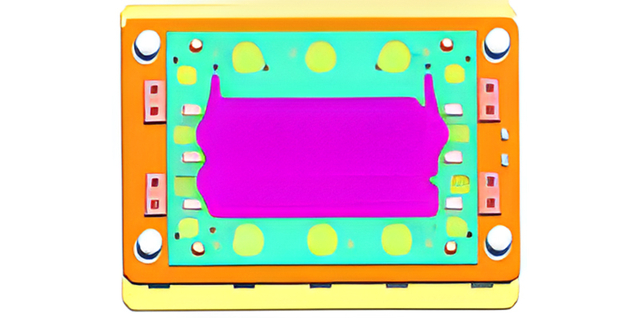

| OP10 Trimming/Piercing | OP20 Forming | OP30 Forming | OP40 Restriking | OP50 Trimming | OP60 Piercing |
 |  |  |  |  |  |
| | | | | |
 | As soon as the mold design is settled and released, the manufacturing workflow begins. Following the approved diagrams, each part undergoes a careful series of procedures — ranging from initial rough machining to wire cutting, fine grinding, thermal processing, and computer numerical control machining. Each phase is executed with unwavering precision, guaranteeing that the material remains intact and dimensions adhere to the strictest specifications. Through this smooth integration of cutting-edge technology and expert craftsmanship, raw materials are transformed into precisely engineered components, ready to be assembled into molds that embody durability, efficiency, and technical superiority. |
 |  |  |
 |
