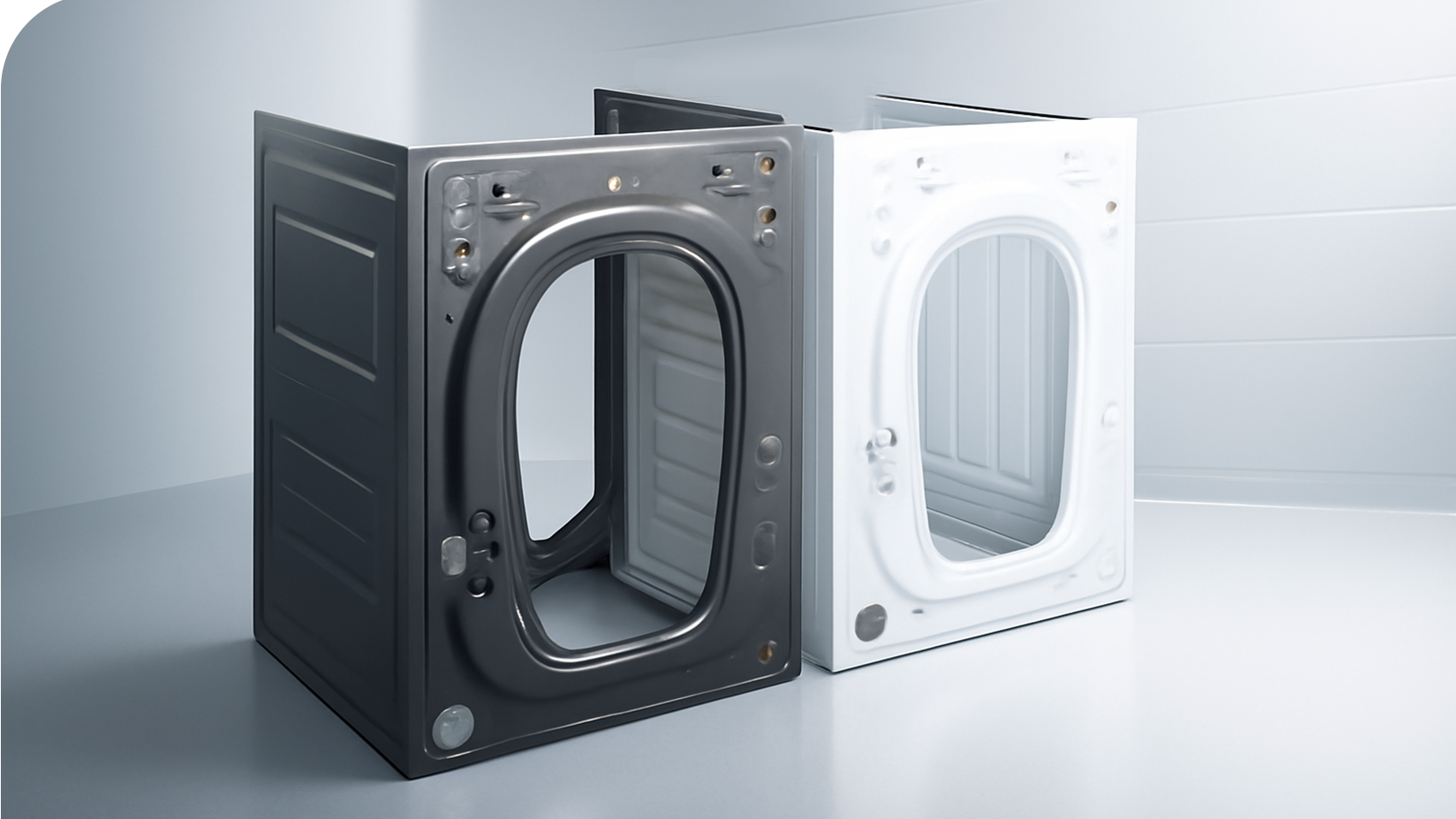

Washing Machine Cabinet Forming Line For Customers Overseas

Designed with precision and flexibility, our forming line meets diverse production needs while ensuring efficiency and consistency.

Overseas clients recognize its professional engineering and adaptable performance, delivering both reliability and satisfaction in every project.

The Mission of the Line

The purpose of this production line is to transform raw materials into finished products with precision and consistency. Every stage is carefully engineered, turning simple beginnings into refined results, where efficiency meets craftsmanship to deliver excellence.

Production line parameters

Cabinet steel grade	Galvanized color plate or pre-coated plate
Thickness of cabinet sheet	0.7- 0.8mm
Cabinet height	350-570mm
Machine run time	≤60S
Labor requirement	Depend on the production cycle time
Service life of clinching punch and die	≥80000 times
Compatibility	Yes
Warranty	12 months

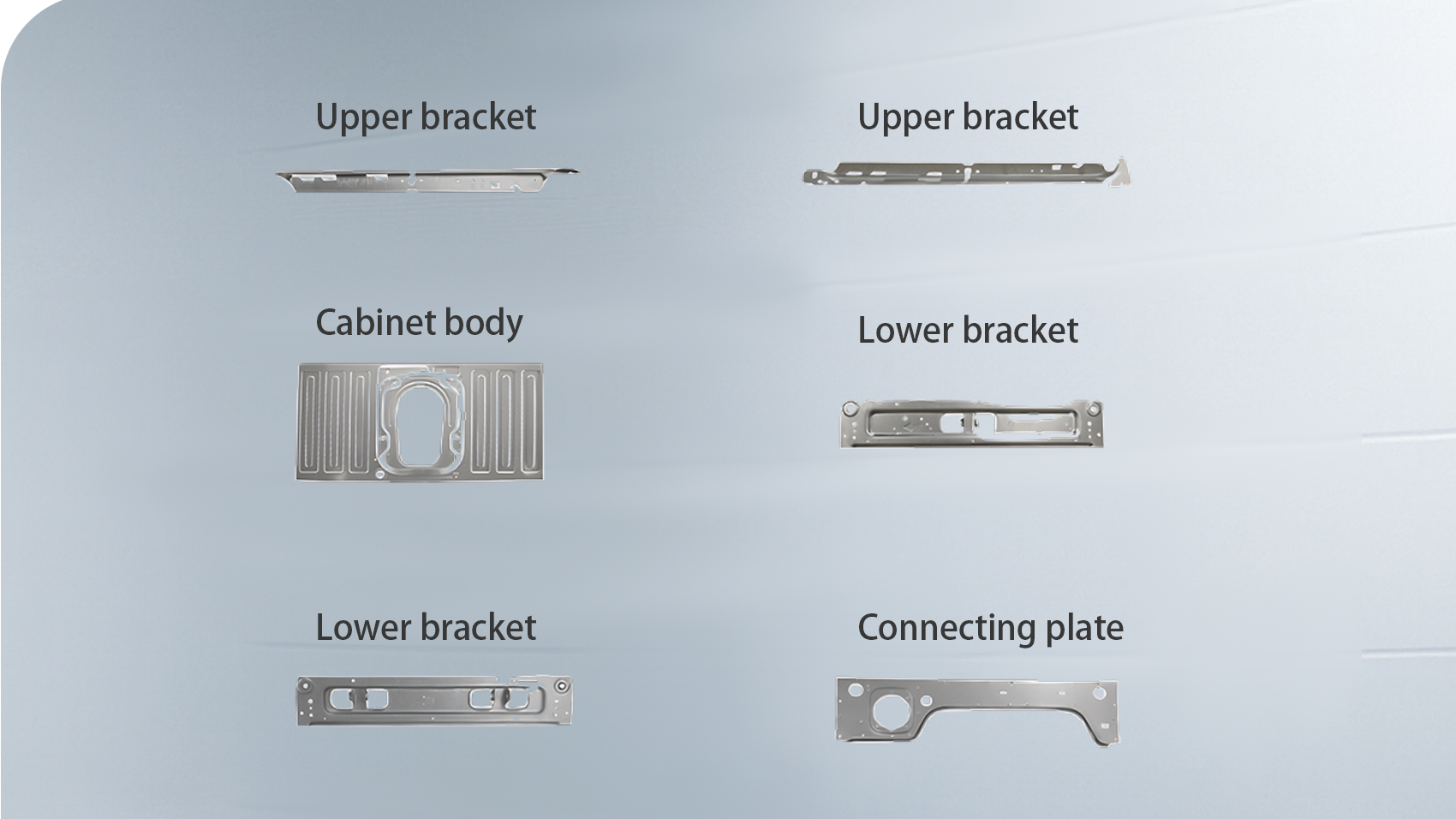

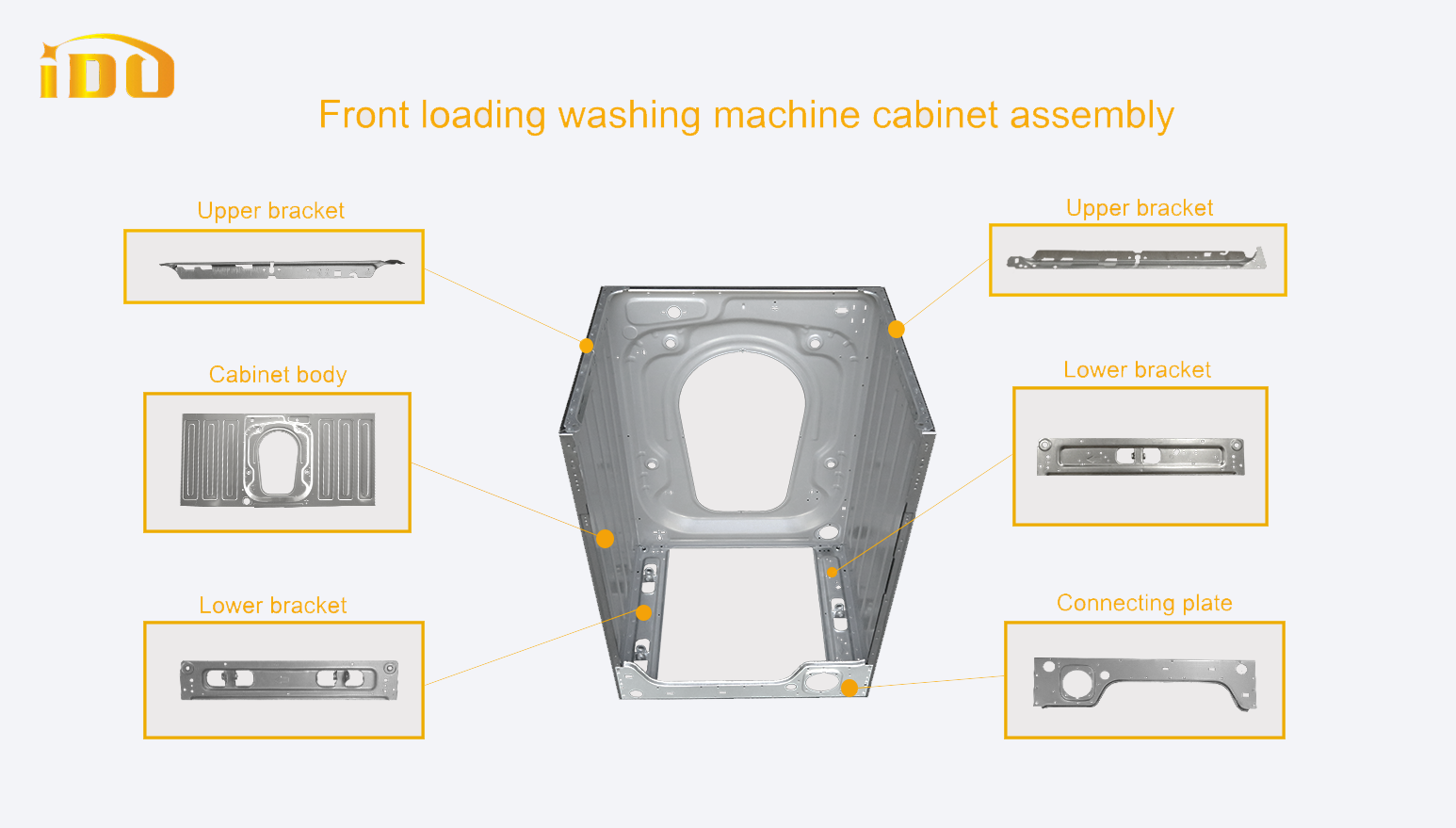

Production line composition

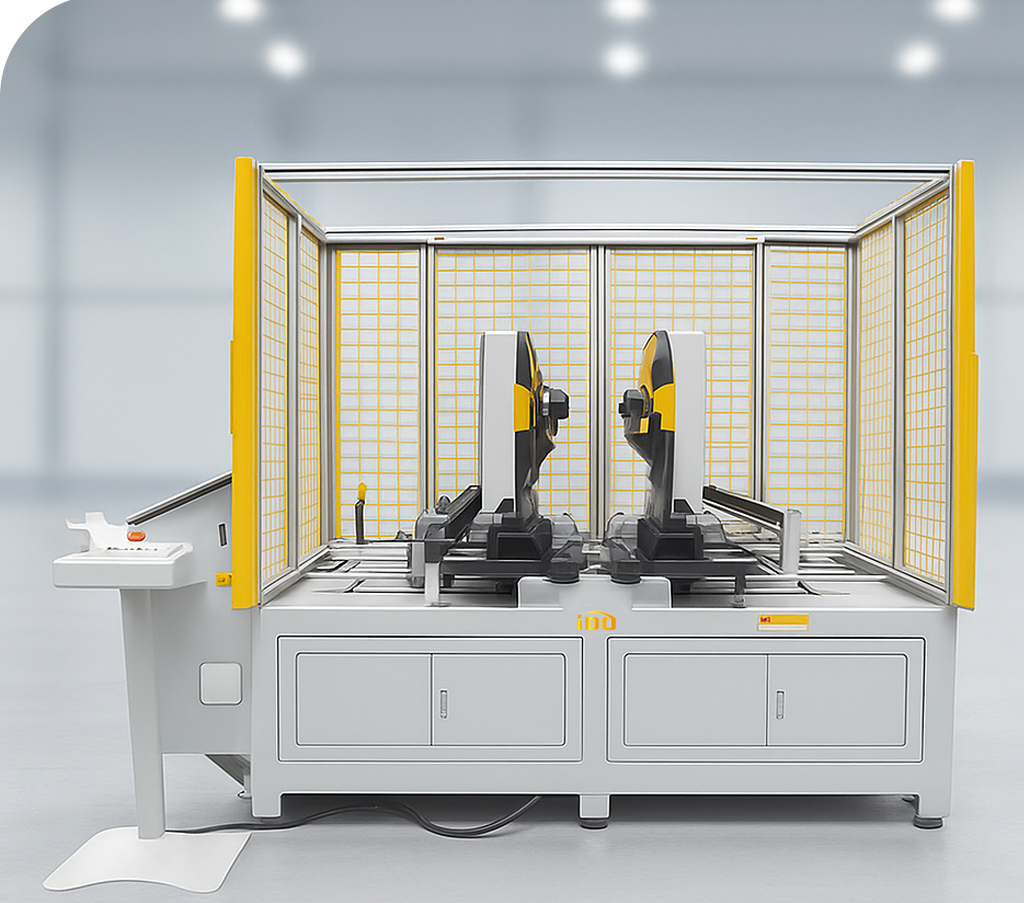

ST1：Cabinet U-bending machine

The frame is a square tube welded frame.

For the positioning blocks around the cabinet sheet body, two sides are stationary, and the rest two sides are adjustable, driven by cylinder.

In order to achieve compatible production of various models, the position of the positioning blocks need to be adjusted by using different screw holes, and the corresponding screw holes need to be marked with the corresponding model.

The machine is protected around by grating + mesh, and a three-color light is set at the highest point.

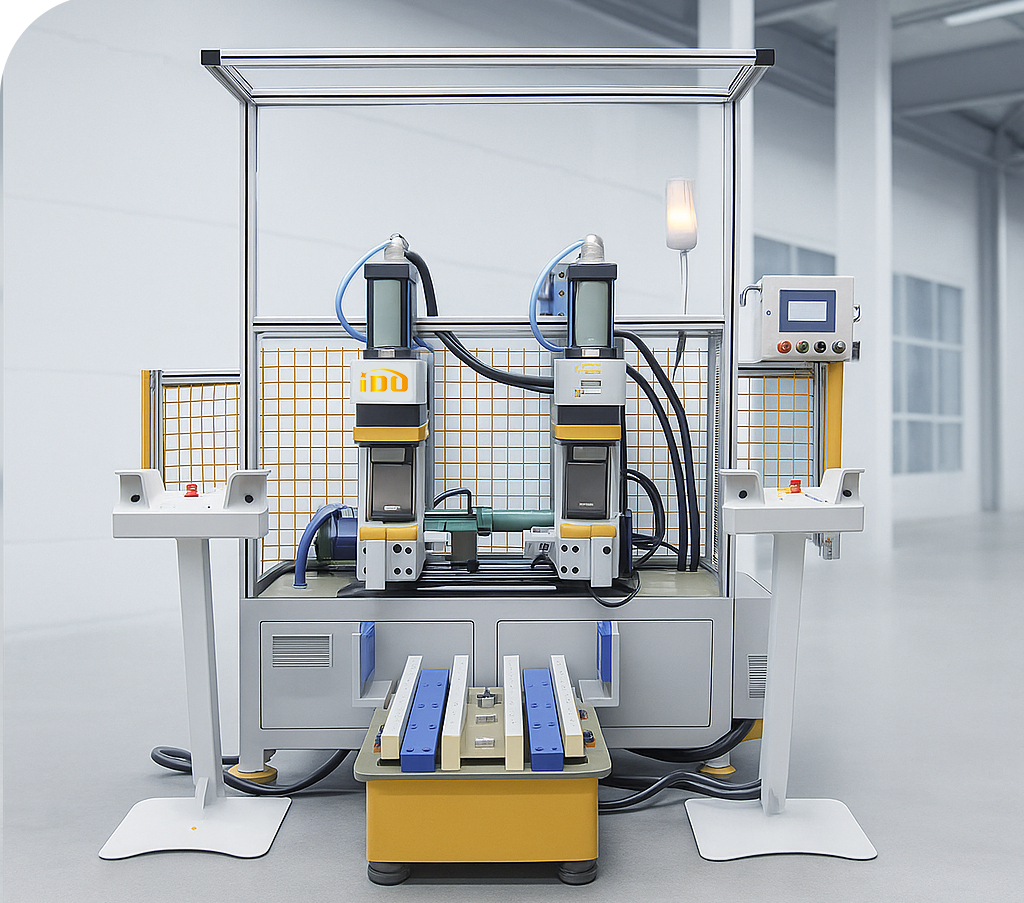

ST2：Connecting plate clinching machine

The overall frame of the machine is welded by steel plates.

The gas-liquid booster cylinder is used to provide clinching power, and clinching of two sides of the connecting plate are carried out simultaneously.

Use the profiling positioning block to confirm the position of the cabinet main body, and the cylinder drives the profiling block to move up and down.

In order to achieve compatible production (several models), each model is arranged with one set of profiling positioning block.

The machine is protected around by grating + mesh, and a three-color light is set at the highest point.

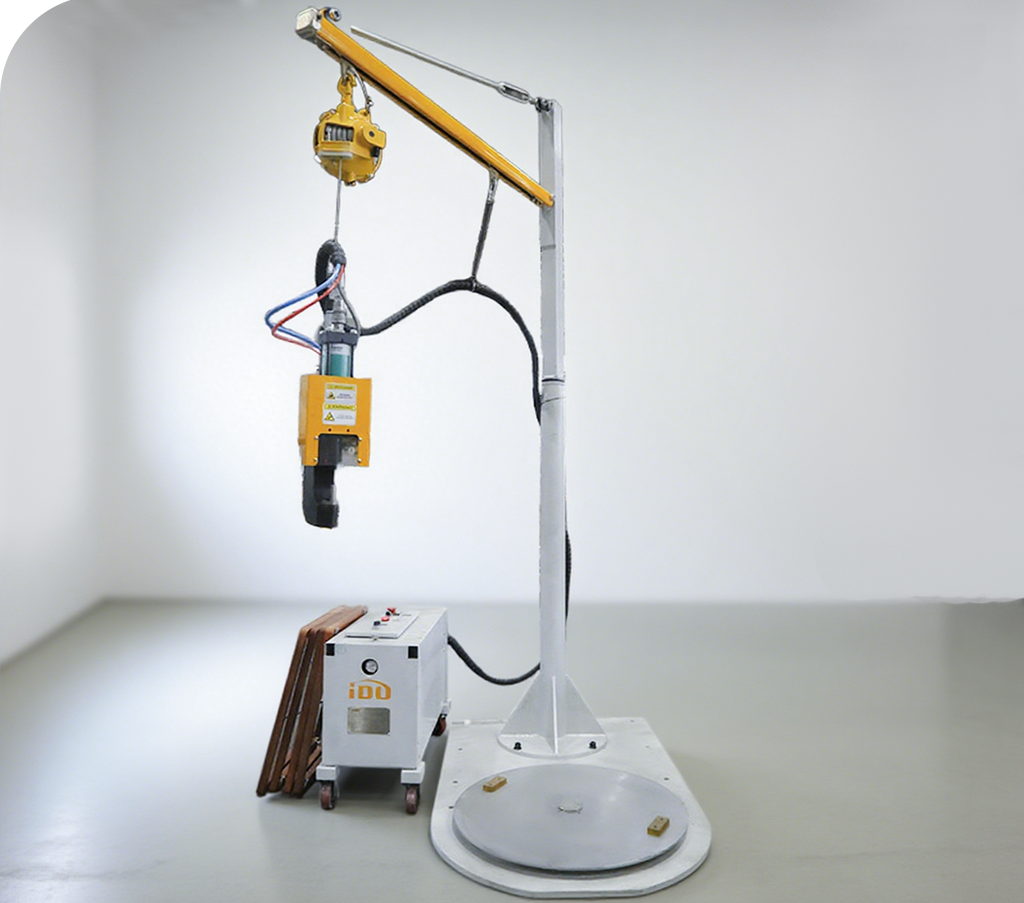

ST3 ( 4 )：Upper ( Lower ) bracket clinching tooling

The overall frame of the device is welded by steel plates, and the clinching tools are suspended by cantilever suspension.

The gas-liquid booster cylinder is used to provide clinching power. First, manually put the U-bended cabinet to the proper position of the tooling, then place the upper (or lower) bracket to finish the clinching manually in multiple times.
