Selection of Feeders in Progressive Die Stamping: Roller Feeders Vs Clamp Servo Feeders

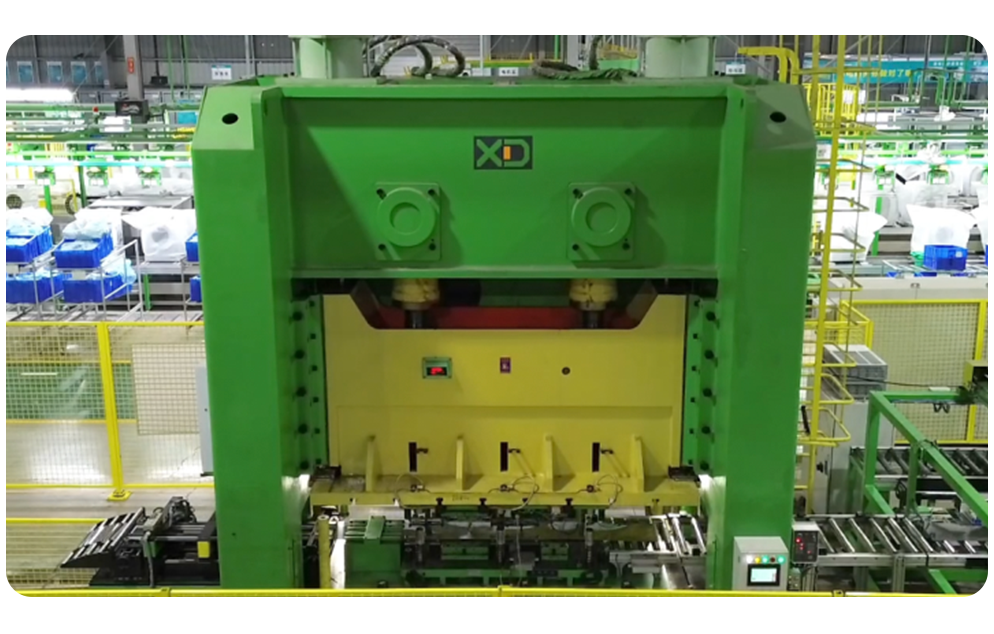

In industrial production, when accurately feeding coil materials into progressive dies for stamping processes, the selection of feeding mechanisms directly affects product quality and production efficiency. Currently, the mainstream roller feeders and clamping servo feeders have distinct application scenarios due to differences in structural principles and performance characteristics. Below is a detailed analysis of the features and applicable scopes of these two types of equipment.

I. Roller Feeder: A Simple, Stable, and Basic Choice

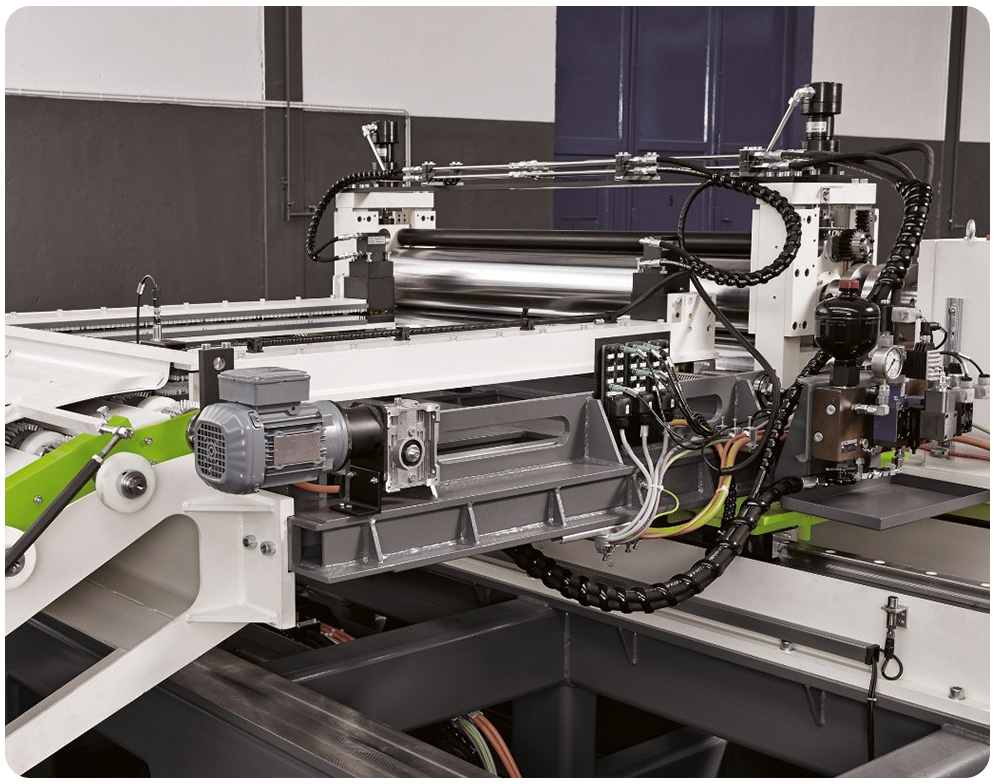

The roller feeder is a common basic feeding device in industrial production. Its core working principle is to clamp materials through friction between one or more pairs of rollers, and achieve intermittent feeding with the cooperation of mechanical transmission components such as cams and gears. This equipment has a very simple structure, mainly composed of core components like rollers, transmission gears, and adjustment handles, which results in a manufacturing cost only 1/3 to 1/5 of that of servo feeders. Daily maintenance is also extremely convenient—only regular lubrication of rollers and gears is required, making maintenance costs significantly lower than those of servo feeders.

Applicable Scenarios for Roller Feeders

1. Scenarios with Stable Material Thickness and Non-Slip Surfaces

The feeding power of roller feeders relies on friction between rollers and material surfaces. If the material thickness fluctuates significantly or the surface is too smooth (such as mirror-finished steel plates or aluminum foil), problems like slipping and uneven feeding are likely to occur. Therefore, it is more suitable for processing materials with uniform thickness and relatively rough surfaces, such as ordinary cold-rolled steel plates (without coating), hot-rolled steel plates, and thick-walled pipes. These materials can form stable friction with rollers to ensure smooth feeding.

2. Scenarios with Fixed Feeding Length and Stable Production Processes

Adjusting the feeding length of roller feeders requires mechanical methods, such as replacing gears or adjusting eccentric wheels. The entire process requires shutdown and component disassembly, which is cumbersome and time-consuming. Thus, it is more suitable for scenarios with fixed feeding lengths and long-term production of single-specification products, such as mass production of standard-size gaskets and stamping parts, or production needs with a small feeding length range (usually ≤300mm).

3. Scenarios with Low Requirements for Feeding Accuracy

The feeding accuracy of roller feeders is typically ±0.1~0.3mm (specific accuracy is affected by material properties and equipment adjustment precision), and it is easily influenced by factors like material thickness changes and roller friction fluctuations. Therefore, it is more suitable for production scenarios with loose dimensional tolerance requirements (e.g., ±0.5mm or more), such as simple gasket stamping, iron sheet stamping in ordinary hardware stamping, or low-precision metal sheet cutting.

II. Clamp Servo Feeder: A Preferred Choice for High Precision and Flexibility

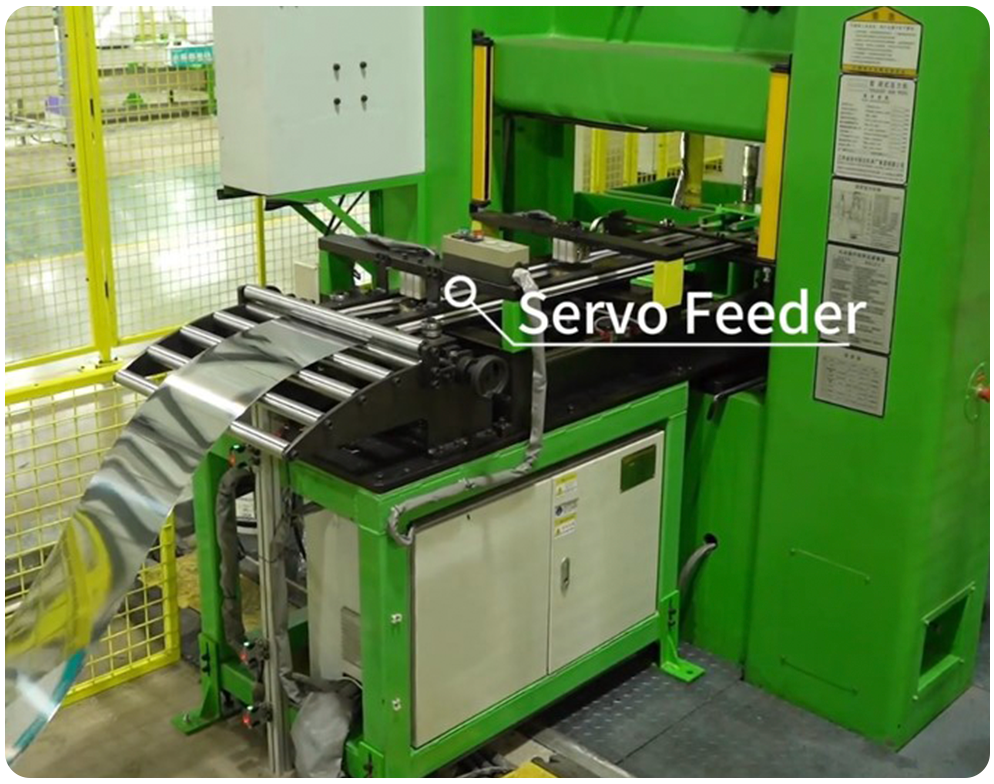

Clamping servo feeders are designed for high-precision feeding requirements, consisting of a frame, feeding rack, clamping device, material moving device, oil dropper, control box, and other components. Among them, the clamping device and material moving device are core working components, achieving precise feeding through servo motor drive and forming closed-loop control with encoders to real-time correct feeding errors.

Structural Innovation and Core Advantages of the Equipment

The clamping feeding mechanism developed by our company adopts an air cylinder clamping and feeding method, equipped with two sets of cylinders: one is a feeding moving cylinder responsible for driving materials forward, and the other is a fixed cylinder used for stably clamping materials. The two sets of cylinders work together through precise opening/closing and pushing coordination to achieve stable conveying of plates. To optimize the clamping effect, a circular copper disc is installed at the end of the cylinder ejector rod, which not only increases the contact area with materials but also avoids wear problems of traditional mechanical clamping—even if the copper disc shows slight wear after long-term use, it will not affect the stability of clamping force. Test verification shows that this clamping method can effectively solve the problem of unstable feeding accuracy in traditional feeders. The feeding length accuracy is adjustable, with a minimum precision of 0.1mm, and it can adapt to the conveying of materials with different widths, offering strong versatility.

Applicable Scenarios for Clamping Servo Feeders

1. Scenarios with Strict Requirements for Feeding Accuracy

With the real-time error correction capability of closed-loop control, clamping servo feeders are particularly suitable for high-precision component production, such as precision stamping parts in the electronics industry (connectors, chip lead frames) and high-precision stamping components in the automotive industry (engine gaskets, transmission accessories). Such products usually require feeding accuracy within ±0.1mm.

2. Scenarios with Variable Materials or Large Thickness Fluctuations

The equipment can real-time adjust clamping force and feeding speed through programs, easily adapting to materials of different types and thicknesses. Whether it is mirror-finished steel plates with smooth surfaces, slippery aluminum foil, or composite plates with large thickness fluctuations, stable conveying can be achieved. This solves the problem that traditional roller feeders are sensitive to material properties, making it especially suitable for production lines with frequent material type switches.

3. Scenarios with Complex Feeding Paths or Flexible Adjustment Needs

It supports programmable feeding logic, enabling complex actions such as segmented feeding, variable-pitch feeding, and intermittent feeding, which can meet the needs of frequent product specification switches in small-batch and multi-variety production. For example, when switching to the production of stamping parts with different lengths, adjustments can be completed by modifying parameters through the control system without disassembling mechanical components, significantly reducing changeover time.

4. Scenarios with Automated Production Line Integration

The equipment can seamlessly connect with punching machines, robots, testing equipment, etc., through PLC or industrial bus, integrating into fully automated production lines. In intelligent stamping lines, it can realize full-process linkage of "feeding - stamping - picking - testing"; in flexible manufacturing scenarios, it can receive production order information through MES systems and automatically adjust feeding parameters to adapt to customized production needs.

5. Scenarios Requiring Flexible Adjustment of Feeding Logic

For scenarios with frequent changes in feeding length and complex production processes, such as alternating production of multi-specification products or production with segmented or variable-pitch feeding paths, the programmability advantage of clamping servo feeders is particularly prominent. There is no need for shutdown for mechanical adjustments; production modes can be quickly switched by modifying parameters through the control system.

III. Conclusion

In conclusion, roller feeders are a "low-cost, stable foundation" choice, suitable for simple, stable, medium-to-low precision production scenarios; while clamping servo feeders, with core advantages of "high precision and high flexibility", are more suitable for complex, high-end automated production needs. In actual selection, comprehensive judgment should be made based on product accuracy requirements, material properties, production batch, and automation level to achieve the optimal balance between production efficiency and cost.
