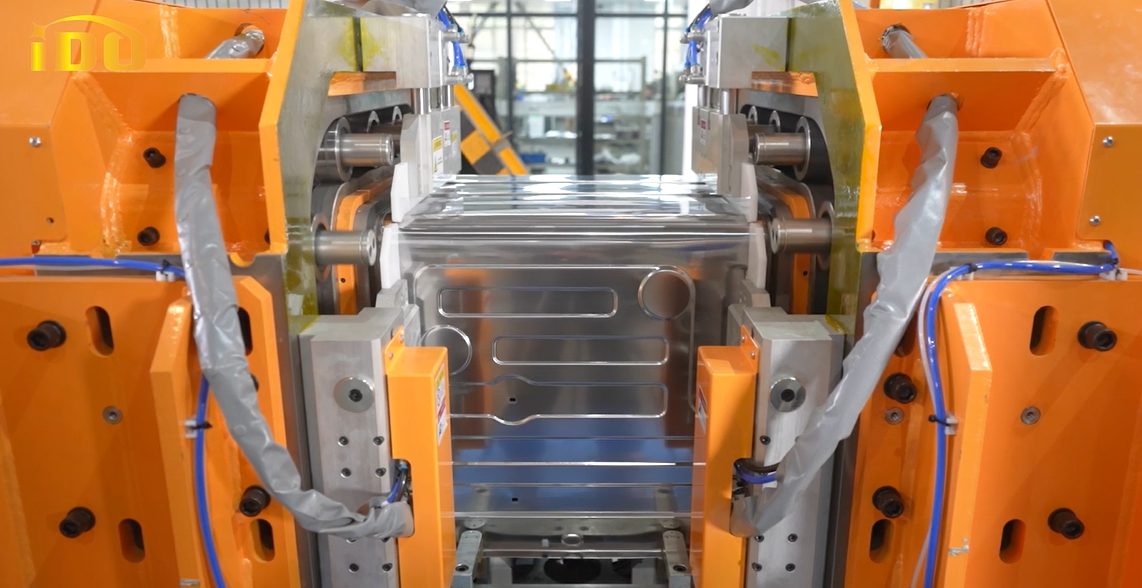

Mechanical Roll Seaming: Bottom/upper Part with Side-back-side

1) Mechanical roll seaming: bottom/upper cover with side-back-side

a) Applicable parts specification: bottom/upper cover, side-back-side. The detailed dimensions are subject to the drawings and actual objects provided by Party A;

Ø Production cycle time: ≤ 60s;

Ø Qualification rate ≥99%;

Ø During the production process, the roll seaming shall be continuous and even, with no glue overflow or missing seaming;

Ø All surfaces should be smooth and free of defects such as tears, wrinkles, warping, distortion, and embossing;

Ø The size and shape meet the drawing requirements;

Ø Equipment safety: double-button control, equipped with emergency stop button, photoelectric switch, fence, grating protection, and safety alarm;

Ø Number of operators: 1 person;

b) Main functions and working procedures:

Ø Function: to make the upper cover, bottom and side-back-side part into a whole piece through roll seaming;

Ø The machine is manually operated, with manual feeding and automatic roll seaming;

Ø Operation processes: manually place the material on the positioning components, start up the machine, then the machine will automatically position and tighten the part, automatically complete the roll seaming. After that, manually take the part out of the machine.
