In modern manufacturing, especially within the automotive and appliance sectors, hydraulic press lines are integral to the mass production of formed metal components. As the demand for high-volume, high-precision components continues to grow, so does the need for optimized production lines that deliver faster throughput without compromising quality. Efficient material flow—the seamless movement of raw sheets to finished parts—is the backbone of any high-performing hydraulic press system.
When bottlenecks occur, whether due to manual handling, alignment errors, or poorly synchronized equipment, production speed suffers. In contrast, a well-designed hydraulic press line with optimized workflow, automation, and smart monitoring tools can reduce downtime, minimize human error, and increase total output. Efficiency in material handling doesn't just impact speed—it directly affects operational costs, energy consumption, and return on investment.
The first critical step in any hydraulic press operation is the loading of metal sheets or blanks. Traditional manual loading methods are not only labor-intensive but also prone to misalignment and surface damage. Automated sheet loading systems dramatically reduce these risks and offer consistent, high-speed performance.
Modern automated systems include magnetic or vacuum-based lifters that pick up sheets from a stack and position them on a conveyor or directly into the feeder mechanism. These systems can operate continuously with minimal human intervention, reducing operator fatigue and improving workplace safety. Additionally, advanced stacking systems ensure that blank sheets are neatly aligned, reducing the chance of double feeding or misfeeds that could damage the dies or interrupt production.
Robotic automation plays a key role here as well. With the integration of AI-powered vision systems, robots can detect sheet orientation, surface defects, and position corrections in real-time. This ensures that only suitable materials enter the press line and that each sheet is properly aligned before stamping.
Automated stacking units also make changeovers between different blank types faster, which is especially important for manufacturers handling short production runs with multiple SKUs. Overall, investing in a smart sheet loading and stacking system yields significant efficiency gains at the very beginning of the workflow.
Once sheets are loaded, they must be precisely fed into the press for stamping. Any deviation from the optimal position can result in off-spec products or even damage to the die sets. Therefore, feeding systems with high positional accuracy are crucial.
Modern feeding systems use servo-driven rollers or grippers to ensure smooth and accurate movement of blanks into the die. These systems are designed to handle varying material thicknesses, sizes, and weights, adjusting automatically to different product specifications. The integration of sensors and real-time feedback systems further enhances precision.
Centering mechanisms align the blank correctly before each press stroke. These may involve mechanical stops, vision-guided actuators, or laser-guided systems that verify the blank's position down to fractions of a millimeter. By minimizing position error, manufacturers can reduce scrap rates and increase tool life.
Optimized feeding systems also improve press cycle times. With faster, more accurate blank positioning, presses can operate at higher speeds without sacrificing quality. In turn, this improves throughput and reduces per-unit production costs.
After pressing, finished parts must be removed from the die area and transferred for further processing, inspection, or packaging. Manual unloading not only slows the process but also increases the risk of product damage and workplace injuries.

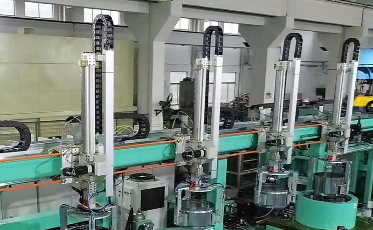

Robotic arms equipped with end-effectors (such as suction cups or magnetic grippers) are now standard in many advanced press lines. These robots can pick up freshly pressed parts, rotate or reorient them if needed, and place them onto conveyor belts or into trays for the next operation. Their speed, precision, and ability to work 24/7 make them invaluable for high-volume production.
Conveyor systems are equally important in maintaining continuous flow. High-speed, programmable conveyors can synchronize with the press stroke, ensuring seamless transfer of parts without collision or misplacement. Some systems also include accumulation zones and buffering capabilities, preventing line stoppages during brief delays or maintenance operations downstream.
Advanced setups include real-time monitoring tools that track part flow, detect jams, and automatically adjust transfer speeds to maintain synchronization. These tools are essential in achieving true line balance, which is key to overall efficiency.
Theoretical advantages aside, numerous manufacturers have experienced substantial efficiency gains by modernizing their press line handling systems. For example:
Automotive OEM Case Study: A Tier-1 supplier in Germany replaced its semi-manual press line with a fully automated system featuring robotic loaders, high-speed servo feeders, and integrated conveyors. As a result, their cycle time per panel dropped by 30%, while unplanned downtime fell by over 50%. Their scrap rate also reduced significantly, thanks to better alignment and automated quality checks.
Appliance Manufacturing: An appliance manufacturer in Asia integrated an AI-powered vision system into its blank centering station. This system could detect and correct misalignments within milliseconds, preventing costly die strikes. They also implemented automated stacking with quick-change tooling, reducing their average changeover time from 40 minutes to under 15 minutes.
Heavy-Duty Equipment Manufacturer: For a manufacturer producing heavy-duty chassis components, switching to a robotic unloading solution enabled them to handle thicker, heavier parts without manual strain or errors. This change improved worker safety while maintaining consistent part quality.
These examples highlight the tangible ROI of automation and smart system integration across the press line.
Beyond just material flow, energy consumption and equipment wear are critical factors influencing press line efficiency. Modern hydraulic presses are now often equipped with energy recovery systems, variable-speed drives, and smart controllers that optimize energy use based on the workload.
In parallel, predictive maintenance systems use sensors and analytics to forecast when a machine is likely to require service. By scheduling maintenance during planned downtime, rather than waiting for failures, manufacturers can avoid unexpected stoppages and extend equipment lifespan.
These technologies also contribute to environmental sustainability, reducing the overall carbon footprint of production operations—an increasingly important consideration in global supply chains.
Efficiency in hydraulic press line production is no longer about pushing machines to their limits—it's about smarter, synchronized systems that work harmoniously to achieve consistent, high-quality output. From automated loading to intelligent unloading, each phase of the press line can be optimized to reduce waste, minimize downtime, and maximize throughput.
As global competition increases and product customization becomes the norm, manufacturers must invest in advanced handling technologies to stay agile and competitive. Smart hydraulic press lines, powered by real-time data, robotics, and automation, are the key to unlocking this next level of performance.
If you're looking to enhance your production efficiency with cutting-edge hydraulic press line solutions, Wuxi IDO Technology Co., Ltd. offers turnkey systems tailored to the specific needs of automotive, appliance, and industrial component manufacturers. With proven expertise in automation, die design, and high-speed press technology, IDO can help you transform your production line for the future.
Visit www.ido-technology.com to learn more, or contact their engineering team directly for a customized consultation.
Maximize performance. Minimize downtime. Choose Wuxi IDO Technology Co., Ltd. for a smarter press line solution.
