Author: Site Editor Publish Time: 2025-11-17 Origin: Site
As the manufacturing industry continues to automate and scale up production, one of the most crucial aspects of maintaining efficiency and safety is managing electrical power distribution. The washing machine assembly line, a highly integrated system involving conveyor belts, automated machines, testing stations, and quality control equipment, depends on stable electrical circuits to operate effectively. Ensuring that the assembly line has the appropriate power setup is not just a technical requirement—it’s a vital safety and productivity consideration.
Yes, a washing machine assembly line typically requires a dedicated circuit to ensure stable, uninterrupted power supply for its mechanical, electrical, and automation systems. Dedicated circuits prevent overload, reduce electrical interference, and enhance safety for both equipment and workers.
In the following sections, we’ll explain in detail why a dedicated circuit is essential for a washing machine assembly line, what types of power configurations are used, how to implement them, and the safety standards that guide their installation.
Why a Dedicated Circuit Is Necessary for a Washing Machine Assembly Line
Electrical Load Requirements in a Washing Machine Assembly Line
Types of Dedicated Circuits Used in Manufacturing
Designing a Power Distribution Layout for an Assembly Line
How to Size the Circuit for Optimal Performance
Grounding and Electrical Protection Measures
Common Problems Caused by Shared Circuits
Safety Standards and Compliance Requirements
Energy Efficiency and Smart Power Management
Final Testing and Maintenance Recommendations
Conclusion

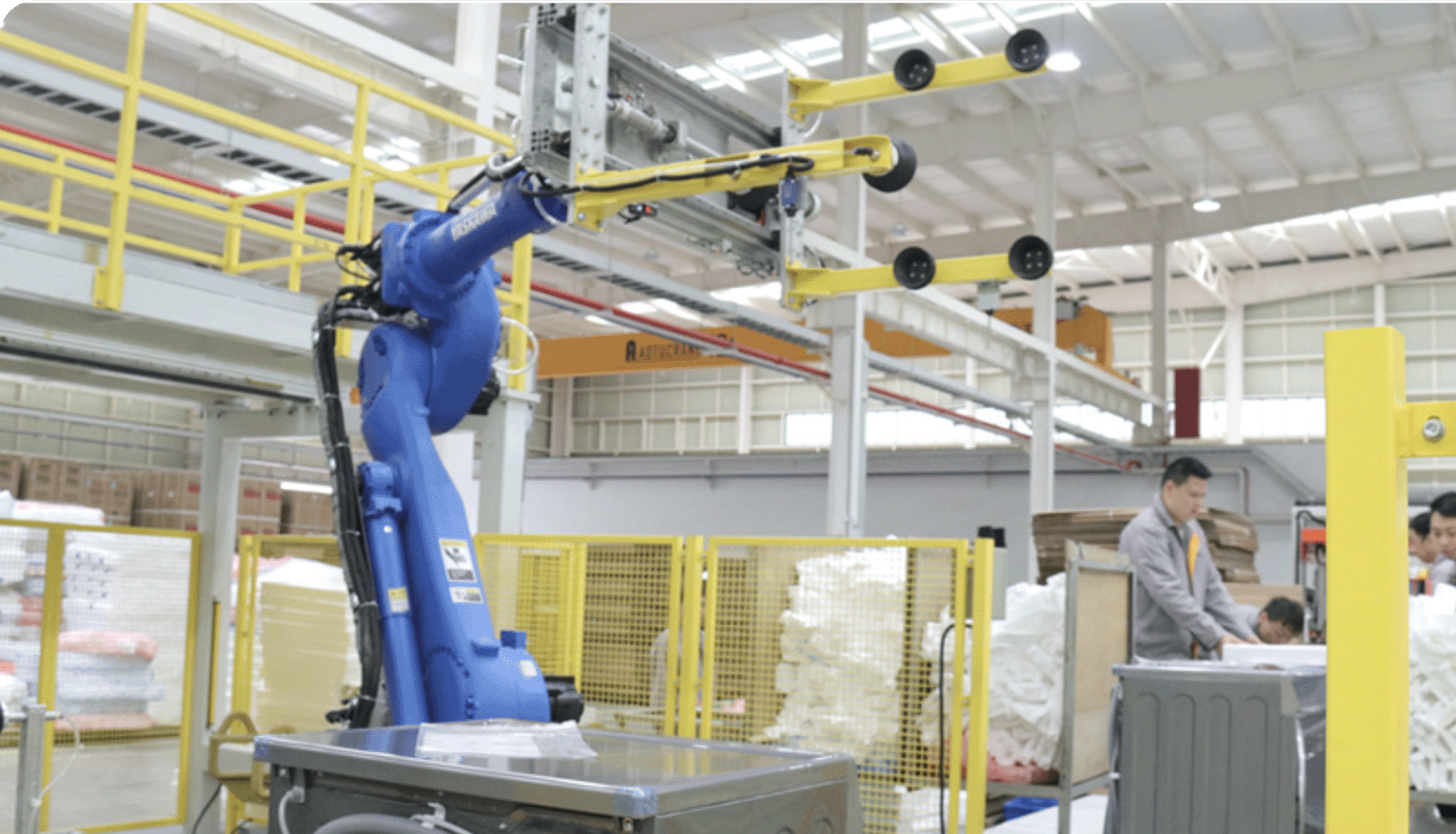

A dedicated circuit ensures that all machines and automation systems within the washing machine assembly line receive stable, uninterrupted electrical power.
In a high-capacity manufacturing environment, several systems operate simultaneously—conveyor drives, robotic arms, PLCs (Programmable Logic Controllers), inspection cameras, and motorized equipment. When all these systems share a single circuit with other factory equipment, it can lead to voltage drops, circuit breaker trips, or even system shutdowns.
A dedicated circuit isolates the power flow for the assembly line, ensuring that fluctuations or overloads in other parts of the factory don’t affect the washing machine production process. This stability is essential for:
Preventing downtime: Power interruptions can halt production, causing loss of output.
Protecting sensitive components: Electronic systems such as sensors and PLCs are highly sensitive to power surges.
Improving quality control: Consistent power helps maintain steady operation for testing machines and automated tools.
In short, a dedicated circuit enhances efficiency, protects equipment, and ensures compliance with industrial electrical codes.

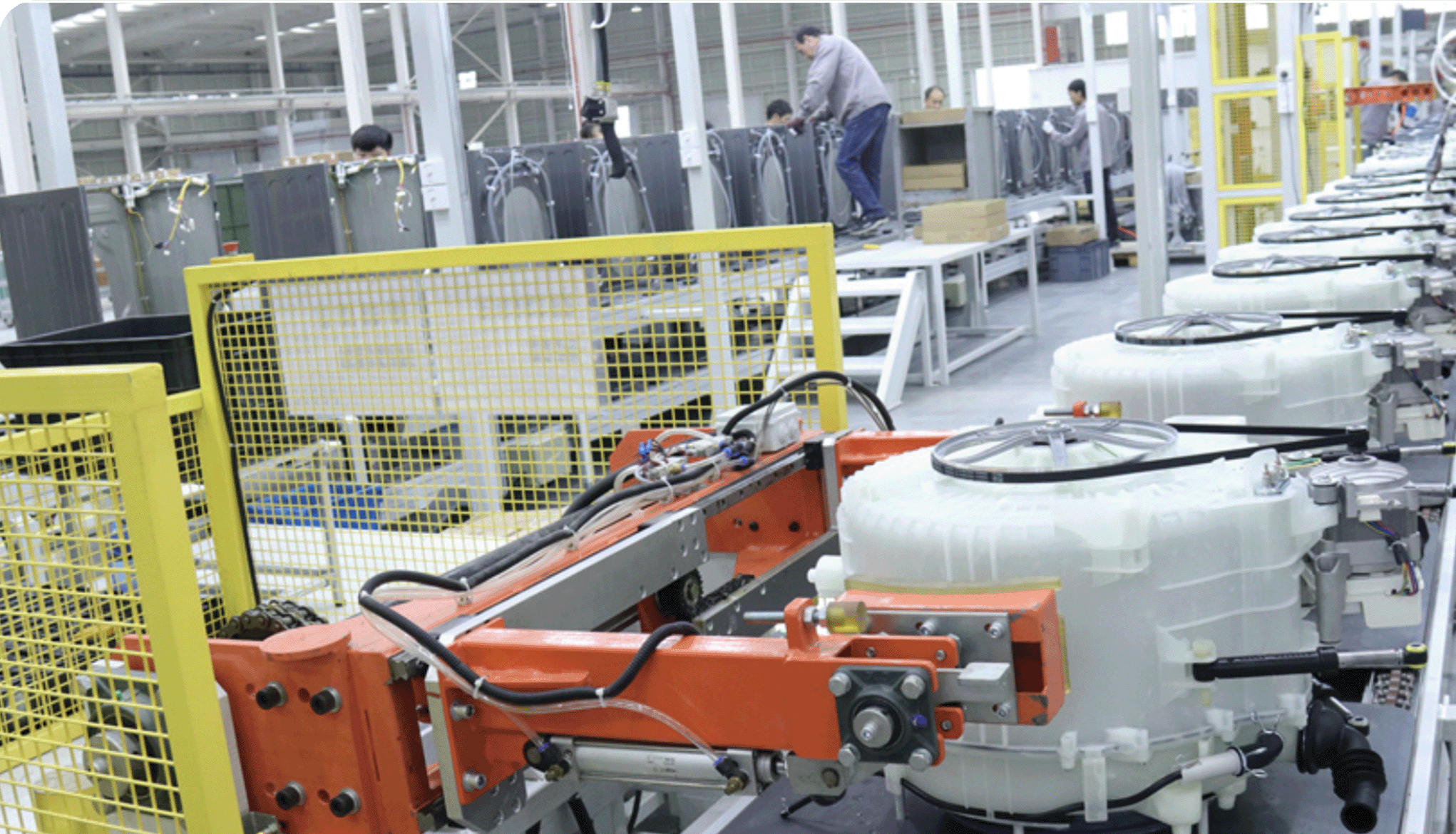

The electrical load in a washing machine assembly line varies depending on the number of machines, level of automation, and type of production equipment.
Each workstation—whether for motor assembly, drum installation, testing, or packaging—has unique power requirements. Here’s a typical breakdown of load consumption for different stages:
| Assembly Stage | Equipment Type | Average Load (kW) | Power Type |
|---|---|---|---|
| Frame Assembly | Welding machine, power tools | 10–20 kW | 3-phase |
| Drum & Motor Assembly | Electric drivers, torque tools | 15–25 kW | 3-phase |
| PLC Control Panels | Computers, sensors, PLCs | 3–5 kW | Single/3-phase |
| Testing & Quality Check | Load testers, leak testers | 20–30 kW | 3-phase |
| Packaging & Conveyor Systems | Belt motors, automation controls | 15–25 kW | 3-phase |
These values show that a washing machine assembly line often operates with a total load exceeding 70–100 kW. Without a dedicated circuit, sharing this load across multiple production lines can easily exceed capacity, leading to instability and electrical hazards.
Washing machine assembly lines use various types of dedicated circuits depending on the power requirements and automation level.
Three-phase power circuits are standard in industrial environments. They provide constant power and are ideal for running high-load equipment such as motors and conveyors. A three-phase system minimizes voltage drops and improves energy efficiency.
Single-phase circuits are used for smaller components and low-power devices like sensors, monitors, and control panels. They are often branched off from the main distribution board but remain isolated from other non-production systems.
These circuits power automation and control systems, such as PLCs and sensors. They operate at lower voltages (typically 24V DC or 48V DC) and require precision power regulation.
A modern Washing Machine Assembly Line usually integrates all three circuit types—main (3-phase), secondary (single-phase), and control (low-voltage DC)—within one electrical design.
A well-designed power distribution layout ensures efficient, safe, and reliable operation of the washing machine assembly line.
When designing the layout:
Identify load centers: Determine where high-power machinery is located and plan separate feeders for them.
Use busbars and distribution panels: These components help divide power evenly and reduce the risk of overload on any single circuit.
Include power monitoring devices: Digital meters and smart sensors can help track consumption and detect faults early.
Maintain proper spacing: Avoid running power lines near water pipes or pneumatic systems to reduce the risk of electrical hazards.
Each production zone—such as motor assembly, leak testing, and packaging—should have its own sub-circuit connected to the main dedicated line to prevent overload.
Proper circuit sizing is critical for ensuring safety and efficiency in the washing machine assembly line.
To size a circuit correctly, engineers calculate the total connected load and apply a safety margin, usually 125% of the expected load. For example:
If the total load is 80 kW, the dedicated circuit should handle at least 100 kW.
Cable sizing, breaker selection, and transformer capacity should be adjusted accordingly.
Factors influencing circuit sizing include:
Voltage requirement (typically 380–480V for 3-phase industrial systems)
Cable distance (to prevent voltage drop over long runs)
Ambient temperature (affects cable insulation and current carrying capacity)
Type of load (inductive loads such as motors require higher starting current)
Grounding and proper circuit protection are fundamental for ensuring safety in a washing machine assembly line.
Grounding prevents electrical shock hazards and stabilizes voltage levels. Each machine should be connected to a common grounding system, typically using copper grounding rods or steel mesh embedded in the floor.
Additional protection includes:
Circuit breakers to isolate faults and prevent fires.
Surge protectors to safeguard PLCs and sensors from voltage spikes.
Residual Current Devices (RCDs) to detect leakage currents and automatically disconnect the circuit.
Proper electrical protection ensures the longevity of equipment and the safety of operators.
Using shared circuits for a washing machine assembly line can lead to operational and safety issues.
Typical problems include:
Voltage Fluctuations – Shared circuits can experience uneven power distribution, causing fluctuations that affect motor performance.
Frequent Breaker Trips – Overloaded circuits result in frequent breaker trips, leading to production interruptions.
Inconsistent Machine Operation – Voltage drops can cause errors in automation systems, leading to misalignment or defective assembly.
Fire Hazards – Overheating wires due to excessive load on shared circuits can increase the risk of fire.
A dedicated circuit eliminates these problems, ensuring stable operation throughout the Washing Machine Assembly Line.
Compliance with electrical safety standards is mandatory for any manufacturing facility, especially for assembly lines.
Key standards include:
IEC 60204-1: Safety of machinery – Electrical equipment of machines.
NFPA 79: Electrical Standard for Industrial Machinery.
ISO 13849: Safety-related parts of control systems.
Local Electrical Codes: Each region or country may have specific regulations governing circuit capacity and grounding.
Compliance ensures the assembly line is safe, efficient, and legally approved for operation.
Dedicated circuits not only improve safety but also contribute to energy efficiency and cost savings.
By monitoring each circuit independently, manufacturers can:
Track real-time energy consumption.
Identify inefficient equipment consuming excessive power.
Schedule maintenance based on load data.
Smart systems using IoT-based power monitoring can optimize energy usage across the entire washing machine assembly line, reducing waste and improving sustainability.
Routine maintenance and testing of dedicated circuits are critical for long-term reliability.
Perform thermal imaging to detect overheating cables.
Conduct insulation resistance tests to verify wiring integrity.
Regularly calibrate sensors that monitor power and voltage.
Inspect grounding connections for corrosion or damage.
These practices help ensure the assembly line operates smoothly with minimal downtime.
A Washing Machine Assembly Line requires a dedicated circuit to ensure operational efficiency, electrical safety, and consistent power delivery. From powering high-load conveyor systems to running sensitive control electronics, each section of the line depends on reliable electricity. Installing a dedicated circuit minimizes power disturbances, prevents overloads, and helps maintain compliance with industrial safety standards.
For modern, automated manufacturing environments, having dedicated electrical circuits isn’t just an option—it’s a necessity for achieving high-quality, uninterrupted production.
