Bitumen Oven Line for Dishwasher Tub Assembly: Technical Specifications, Safety Features, And Manual Operation Procedures for Tub Assembly

Introduction to the technical specifications, safety features and manual operating procedures of the bitumen oven line for dishwasher tub assembly

a) Applicable material specifications:

Ø Tub assembly: Detailed dimensions are subject to the drawings and actual objects provided by Party A;

Ø Bitumen: Detailed dimensions are subject to the drawings and actual objects provided by Party A;

b) Main technical requirements of equipment:

Ø Production cycle time of this oven line: ≤60s;

Ø Qualification rate: ≥99%;

Ø During the production process, the bitumen shall be evenly baked to the surface of tub assembly and there shall not be any defects caused by baking;

Ø Operation processes: manual loading (tub assembly, bitumen) - conveying – bitumen baking - conveying – manual unloading;

Ø Equipment safety: double-button operation, equipped with emergency stop button and safety alarm;

Ø Number of operators: 3 persons.

c) Main functions and working procedures:

Ø The function is to bake the bitumen to the tub assembly;

Ø The special machine is operated manually by 3 people, manually placing the tub assembly, pasting the bitumen, and conveying it to the automatic baking section;

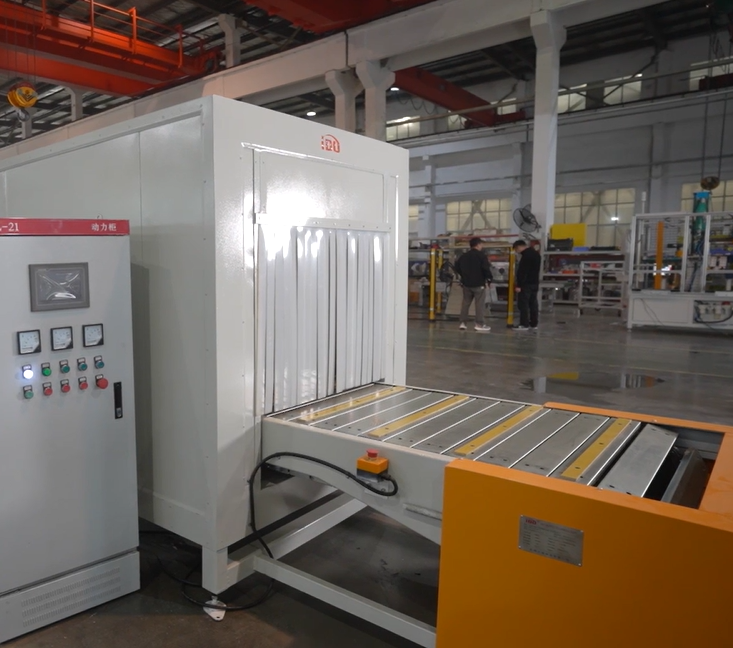

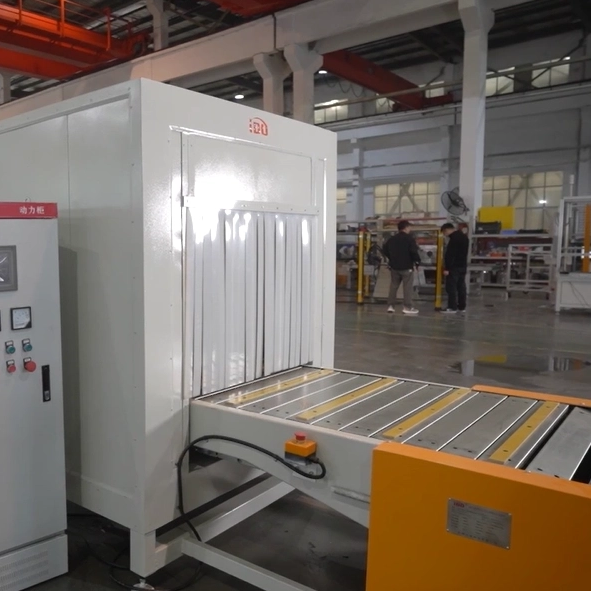

Ø Operation processes: Start the equipment, manually place the tub assembly on the assembling table, paste the bitumen and then convey it to the baking tunnel to start baking. Finally, the baked tub assembly will be conveyed through the plate chain. Manually unload the tub assembly.

Auxiliary conveyors

a) Main functions and working procedures:

Ø Conveyor between Adhesive sealant dispensing machine and roll seaming machine: belt conveyor

Ø Conveyor among roll seaming machine, sealing support and tub clinching machine ,and reinforcement frame and tub clinching machine: unpowered roller conveyor, with height difference at 2 ends, so that the product can directly move on the conveyor.

Ø In order to meet the needs of on-site layout, the length of the auxiliary conveyors must be determined according to the layout drawing.
