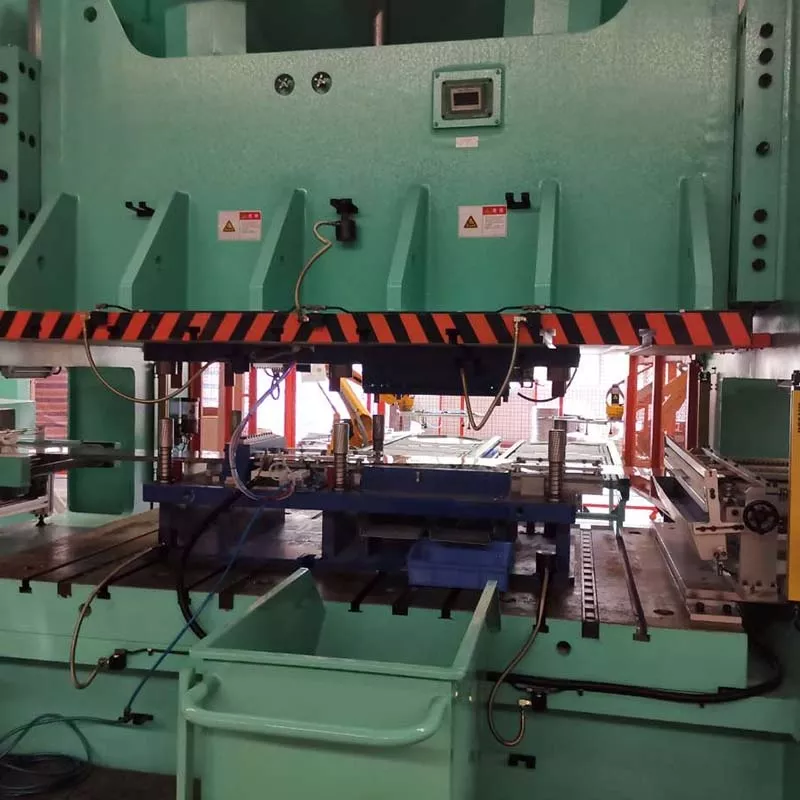

Applications of Hydraulic Press Lines in Automotive Component Manufacturing

Stamping is a cornerstone process in automotive body structure manufacturing, transforming flat metal sheets into complex three-dimensional components that define a vehicle's shape, strength, and safety. By applying controlled pressure through dies and presses, manufacturers can produce precise body panels, brackets, and reinforcements with repeatable accuracy. This versatility allows for the efficient creation of parts ranging from graceful exterior surfaces—such as doors and hoods—to critical structural elements like side-impact beams and roof rails.

In today's automotive landscape, where reducing weight and improving fuel efficiency are paramount, stamping enables the use of ultra-high-strength steels and advanced alloys. These materials offer exceptional strength-to-weight ratios but require precise force control to avoid tearing or springback. Hydraulic press lines, in particular, excel at this task by delivering smooth, adjustable pressure profiles that gently shape metal without introducing defects. This level of control not only ensures consistent dimensional tolerances—often within fractions of a millimeter—but also produces high-quality surface finishes that minimize downstream machining and painting work.

Moreover, modern stamping lines integrate automation and real-time monitoring systems, allowing engineers to track material flow, press force, and die temperature on the fly. The result is a highly efficient production environment where each stamped component meets stringent safety standards and aesthetic requirements, laying a reliable foundation for the vehicle's performance and longevity.

Forming Precision and Surface Quality Requirements for Outer Body Panels

Outer body panels—such as doors, hoods, and fenders—play a dual role in automotive manufacturing: they define a vehicle's aesthetic appeal and contribute to its structural integrity. To meet both design and functional goals, these panels must be stamped with exceptionally tight dimensional tolerances and flawless surface finishes.

1.Dimensional Accuracy
Automakers often specify dimensional tolerances within ±0.2 mm for critical features like door edges and hood gaps. Achieving this accuracy begins with precision die design, where every contour, flange, and bead is modeled to exact specifications. During forming, hydraulic press lines gently apply force in a controlled ramp-up and ramp-down profile. This avoids sudden pressure spikes that can cause material springback—where the metal elastically returns toward its original shape—and ensures that each panel emerges from the die matching the CAD model.

2.Surface Finish Quality
A high-quality surface finish is essential for consistent paint adhesion and a premium look. Even minor die marks or wrinkles can lead to visible imperfections after painting. To prevent these defects, presses integrate die cushion systems that hold the flange material in place, controlling metal flow into the die cavities. Additionally, draw beads and strategically placed lubrication channels guide the sheet metal smoothly, reducing friction and eliminating local thinning or tearing.

3.Material Considerations
Modern vehicles increasingly use ultra-high-strength steels (UHSS) and aluminum alloys in outer panels to reduce weight without compromising safety. These advanced materials demand even greater control: their higher yield strengths exacerbate springback and require slower ram speeds or dwell-time holds at peak pressure. Hydraulic presses accommodate these needs with programmable speed profiles and pressure-holding capabilities.

4.Real-Time Monitoring and Automation
To guarantee consistency, stamping lines now feature real-time sensors that track press force, die cushion pressure, and material flow. If any parameter drifts outside acceptable limits, the system can automatically adjust press settings or flag the panel for inspection. Integrated cameras and laser scanners further verify panel geometry before it proceeds to painting or final assembly.

Challenges in Thick-Plate Forming for Chassis Components (Subframes and Crossmembers)

Chassis parts such as subframes and crossmembers form the structural backbone of a vehicle, supporting suspension, engine mounts, and crash loads. Unlike thin outer panels, these components are stamped from thicker steel plates—often 2 mm to 5 mm gage or more—to provide the necessary rigidity and strength. Forming such heavy-gauge materials presents unique challenges that require specialized hydraulic press lines and carefully engineered dies.

1. High Forming Forces and Press Capacity
Thicker steel demands substantially higher tonnage to shape metal without cracking. A typical hydraulic press line for chassis parts may exceed 1,000 tons of capacity. Precise control of that power is critical: sudden pressure spikes can fracture the steel, while insufficient force leads to incomplete draws and wrinkling. Hydraulic systems excel here by allowing smooth, programmable ramp-up and ramp-down of pressure, ensuring consistent metal flow throughout the die.

2. Controlling Material Flow and Preventing Defects
Thick plates resist bending and stretching more than thin sheets. To avoid cracks and maintain even wall thickness, dies incorporate features such as pre-draw radii, draw beads, and strategically placed blank holders. These elements guide material into the die cavity, balancing tension and compression forces. Multi-stage dies—progressing through rough forming, intermediate drawing, and final trimming—further distribute deformation steps, reducing stress concentration.

3. Managing Springback and Dimensional Accuracy
Springback—the elastic recovery of metal after forming—is magnified in thicker materials, making it harder to hit tight tolerances. Hydraulic presses address this by utilizing dwell functions, holding peak pressure for seconds to let the metal “set” in its new shape. Supplementing this, precision die adjustment and real-time force monitoring help engineers compensate for springback in tool design.

4. Die Durability and Maintenance
Stamping thick steel accelerates die wear. High-performance tooling materials (e.g., carbide inserts, hardened tool steels) and surface treatments (such as nitriding) enhance life span. Quick-change die systems minimize downtime, while condition-monitoring sensors alert technicians when maintenance is due.

Application of Advanced High-Strength Steels in Vehicle Safety and Their Forming Requirements

Advanced high-strength steels (AHSS) have revolutionized automotive design by enabling lighter, safer vehicles without compromising crash protection. Grades such as Dual-Phase (DP), Transformation-Induced Plasticity (TRIP), and Martensitic steels offer tensile strengths ranging from 600 MPa to over 1,500 MPa—levels unattainable with conventional mild steel. These exceptional mechanical properties allow manufacturers to reduce sheet thickness, cut vehicle weight, and improve fuel efficiency, all while enhancing occupant safety in collisions.

1. Structural Safety Benefits of AHSS
In a crash, a vehicle's body structure must absorb and redirect energy away from the passenger cell. AHSS components—used in pillars, side rails, and bumper beams—deform predictably under high loads, creating controlled crumple zones. Dual-Phase steels, for example, combine a soft ferrite matrix with hard martensite islands, granting both formability and strength. TRIP steels offer even higher elongation, allowing components to stretch significantly before fracturing, which further dissipates energy in severe impacts.

2. Forming Challenges and Required Press Capabilities
Despite their advantages, AHSS grades present stamping challenges due to higher yield points and limited ductility. Forming these materials demands:

• Greater Tonnes of Force: Higher yield strengths require hydraulic presses with sufficient capacity to push steel into complex die cavities without stalling. Typical presses operate at 800–1,200 tons for AHSS parts.

• Controlled Ram Speeds: Rapid impact can cause edge cracking. Press profiles must ramp up and decelerate smoothly, often employing programmable speed curves to match steel behavior.

3. Pressure Dwell and Springback Compensation
AHSS exhibits pronounced elastic springback—when metal rebounds after die release—making dimensional control difficult. To minimize this:

• Dwell Time: Holding peak pressure for a few seconds allows the steel to “set” in the new geometry, reducing rebound.

• Advanced Die Design: Engineers incorporate over-bending or tailored bead layouts that offset anticipated springback, ensuring final dimensions fall within tight tolerances (often ±0.3 mm).

4. Tooling Material and Surface Treatments
Stressing and abrasion from AHSS accelerate die wear. To extend tool life:

• Hardened Tool Steels: Dies are crafted from high-hardness alloys capable of resisting galling.

• Surface Coatings: Nitriding, chrome plating, or physical vapor deposition (PVD) layers reduce friction and prevent adhesive wear, maintaining finish quality and dimensional accuracy.

5. Integration of Servo-Hydraulic Systems
Modern hydraulic press lines integrate servo-hydraulic drives, combining electric precision with hydraulic power. These systems deliver real-time feedback on position, force, and speed, allowing on-the-fly adjustments to accommodate material variability. The result is consistent part quality, even as steel lot properties shift.

By addressing these forming requirements—high tonnage, controlled speeds, dwell functions, and robust tooling—manufacturers can fully harness the safety benefits of AHSS. As automotive standards evolve toward stricter crashworthiness and lighter vehicles, advanced hydraulic stamping solutions remain essential in turning high-strength steel into life-saving car structures.

Conclusion: Balancing Strength and Aesthetics with Hydraulic Press Lines

Hydraulic press lines uniquely bridge the gap between raw performance and refined appearance in automotive manufacturing. Their precise force control, programmable pressure profiles, and multi-stage die capabilities allow even the toughest high-strength steels to be formed without defects, while also delivering the flawless surface finishes required for exterior panels. By integrating die cushions, dwell functions, and real-time monitoring, these systems ensure that every chassis member, side panel, and hood meets stringent dimensional tolerances and aesthetic standards—unveiling vehicles that are both structurally robust and visually impeccable.
